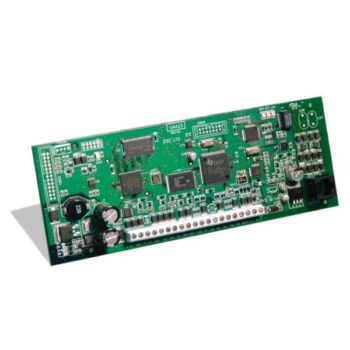

DSC TL-300


Universal Internet Alarm Communicator

Availability: Please Call for Lead Time

  • Factory New
Brand: DSC FireAlarm.com Part #: 80514 Category: Manufacturer Part #: TL-300


The TL300 connects directly to the telephone output of a control panel and simulates a telephone connection, providing a TCP/IP connection that sends predefined Contact ID codes to the central monitoring station.


Weight 1.00 lbs
Dimensions 3.25 × 5.25 × 1.00 in



  • Compatible with most control panels that use the Contact ID format
  • Instant, always-on IP communication
  • Works over local LAN/WAN network or the Internet
  • 128-bit AES encryption (NIST approved)
  • Supports DHCP (dynamic IP addresses)
  • Low network bandwidth requirements
  • Compatible with 10/100BaseT networks
  • Reports events to 2 different re ceiver IP addresses
  • UL standard & encrypted line security
  • 12-24 volt DC support (v1.5 and higher)
  • 4 on-board programmable zone inputs and 2 programmable voltage outputs as stand-alone module
  • Programmable through the PK5500 LCD keypad or T-Link Console software
  • Software upgrades via network
  • Compatible with Sur-Gard System I/II/III/IV monitoring station receivers
  • Polling and hardware substitution protection


T-Link TL300CF Kit Addendum
DSC – Data Sheet
