Fike RFCP-2100

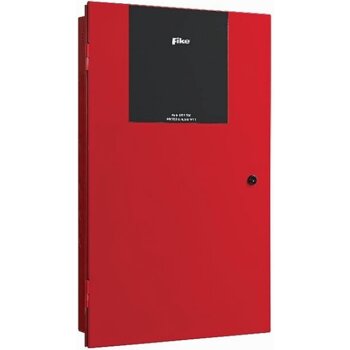

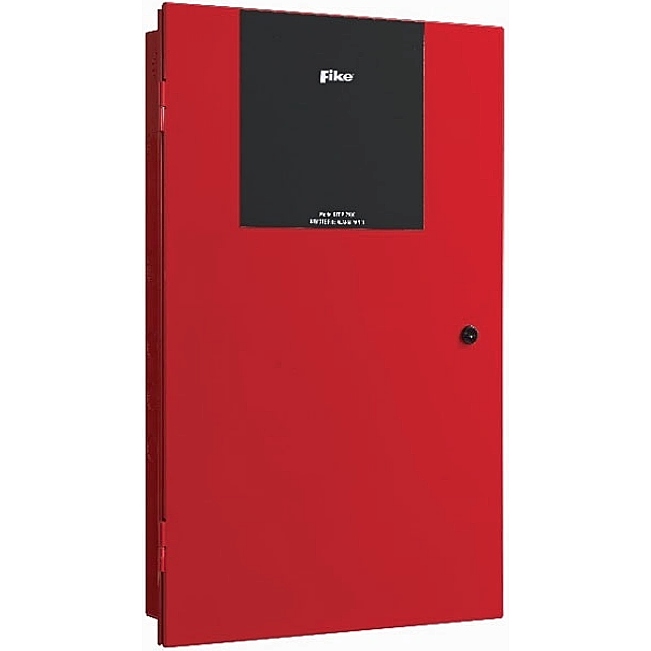

Remote Fire Panel (No Display) – 2100PT – Red Cabinet

Availability: Please Call for Availability

  • Factory New
Brand: Fike Part #: 142017 Category: Manufacturer Part #: RFCP-2100Secondary Part #: RFP-2100


The FCP‐2100 is an intelligent Fire Alarm Control Communicator. The basic FCP‐2100 panel contains one built‐in signaling line circuit (SLC), which can support 159 sensors and 159 modules (FIK device protocol). Additional SLC loops can be added using the model FIK‐6815 SLC expander to increase the overall point capacity to 2100 per panel.
The FCP‐2100 has the interconnection capability for up to 32 panels. The system has two modes of operation: multiple panels covering one larger building or multiple independent buildings. The RFCP‐2100 can be used in a networked system where at least one FCP‐2100 is in the system. It is the same as the FCP‐2100 without the display.
The FCP‐2100 has eight onboard Flexput™ circuits that can be configured for auxiliary power, notification outputs, or conventional smoke detector inputs (Class A or Class B). The FACP also has a built‐in dual phone line digital alarm communicator/transmitter (DACT), IP or optional cellular technologies, Form C trouble relay, and two programmable Form C relays. The FCP‐2100 has powerful features such as detector sensitivity, day/night thresholds, drift compensation, pre‐trouble maintenance alert, and calibration trouble alert.


Weight 16 lbs
Dimensions 26.38 × 16.19 × 3.94 in

Honeywell International





Unit of Measurement

EA (Each)

Production Status



  • FCP‐2100 or RFCP‐2100 can be used in a networked system where at least one FCP‐2100 is in the system
  • Network support for up to 32 panels
  • Built‐in support for up to 159 FIK detectors and 159 FIK modules
  • Four line LCD with 40 characters per line
  • Network card allows copper or fiber connection option
  • Built‐in dual phone line, digital alarm communicator/transmitter (DACT), IP or optional cellular
  • JumpStart AutoProgramming feature
  • Built‐in USB interface for convenient and quick programming
  • Convenient field‐upgradeable firmware
  • Supports up to four FIK‐W‐WGI wireless gateways, each allowing up to 49 wireless devices
  • Supports Class B and Class A SLC and SBUS configurations
  • Built‐in synch for Gentex®, System Sensor®, and Wheelock® appliances

FCP‐2100 / RFCP‐2100 Fire Alarm Control Communicator
