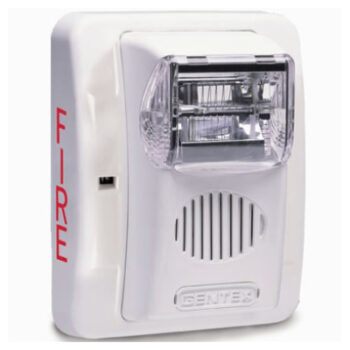

Gentex GEC24-1575WW
Horn-Strobe Fixed 15/75 Cd Strobe Wall
Factory New
Description
The Commander2 Series is a low profile strobe, horn or horn/strobe combination that offers dependable audible and audible/visual alarms and the absolute lowest current available. The GE Series is available in fixed candela options of 15/75 and 177. The Commander2 Series horn offers a continuous or synchable temporal three in 2400Hz and mechanical tone, a chime and whoop tone. All tones are easy for the professional to change in the field by using switches.
Features
- Nominal voltage 24VDC
- Fixed candela options of 15/75 and 177
- GEH horn is available in 12VDC or 24VDC
- Super-Slide® Bracket – ease of supervision testing
- Checkmate® – instant voltage verification
- Unit Dimensions: 5” (12.7 cm) high x 4.5” (11.43 cm) wide x 2.5” (6.35 cm) deep
- Synchronize strobe and/or horn with Gentex AVSM Control Module
- Prewire entire system, install mounting bracket, then install signals
- Documented lower installation and operating costs
- Input terminals 12 to 18 AWG
- Switch selection for high or low dBA
- Switch for chime, whoop, mechanical and 2400Hz tone
- Switch for continuous or temporal 3 (not available on whoop tone)
- Tamperproof re-entrant grill
- Surface mount with the GSB (Gentex Surface Mount Box)
- Silence horn while strobes remain flashing
- Faceplate available in red or off-white
Resources
Commander Series Low Frequency Evacuation Signals
Gentex – Data Sheet
