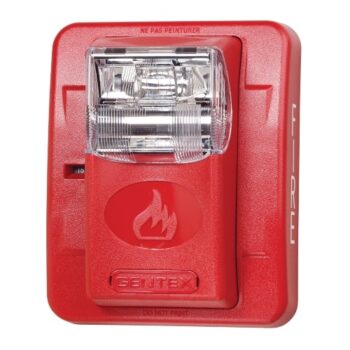

Gentex GES24-1575WR
$72.79
Strobe Only Fixed 15/75Cd Wall
Availability: Estimated 6 - 8 Business Days
Factory New
Features
- Nominal voltage 24 VDC for horn, strobe and horn/strobe
- Nominal voltage 12 VDC for horn
- Fixed candela models of 15/75 and 177
- Unit Dimensions: 5” (12.7 cm) high x 4.5” (11.43 cm) wide x 2.5” (6.35 cm) deep
- Super-Slide® Bracket, Ease of Supervision Testing
- Checkmate® Instant Voltage Verification
- Prewire entire system, install mounting bracket, then install signals
- Documented lower installation and operating costs
- Input terminals 12 to 18 AWG
- Switch selection for high or low dBA
- Switch for 2400 Hz, mechanical, chime and tones
- Switch for continuous or temporal 3 (not available on whoop tone)
- Synchronize strobe and/or horn with Gentex AVSM Control Module
- Silence audible while visual appliance will remain flashing
- Tamperproof re-entrant style grill and locking screw (optional use)
- Surface mount with the GSB (Gentex Surface Mount Box)
- Faceplate available in red or off-white
- Wall mount
Resources
Fixed Candela Evacuation Signals; GEC/GES/GEH Series
Gentex – Data Sheet
