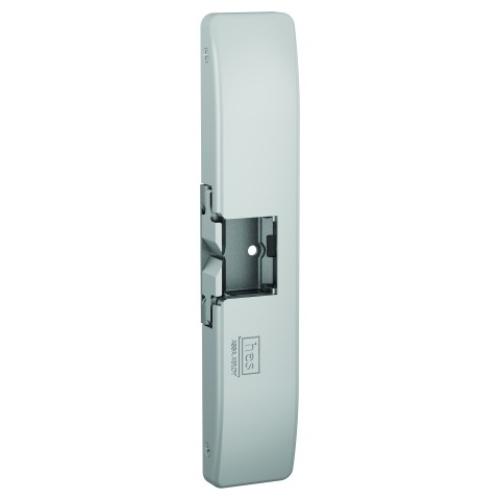

HES 9600 LBM-6300


Electric Strike w/latch Bolt 630 Finish

Availability: Please Call for Availability

  • Factory New
FireAlarm.com Part #: 71892 Category: Manufacturer Part #: 9600 LBM-6300


The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4″ throw Pullman latch-bolt. All components are completely encased within its 3/4″ thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latch-bolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC. The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.






Production Status



  • Installs in metal or wood frames (wood screws not included)
  • Separate base and decorative cover for easy adjustments
  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,000 lbs
  • Dynamic strength 120 ft-lbs
  • Endurance 1 million cycles
  • Field selectable fail safe/fail secure
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 3/4″ [19mm] Pullman latch
  • SecuriCare five-year, no-fault, no questions asked warranty


9600 Surface Mounted Electric Strike
HES – Data Sheet
