Kidde-Fenwal 06-220150-001


Board Spare Circuit Kidde Aegis/Fenwal 732

Availability: Please Call for Lead Time

  • Factory New
Brand: Kidde-Fenwal Part #: 71722 Categories: , Manufacturer Part #: 06-220150-001

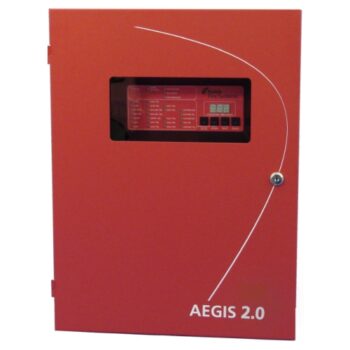

The Kidde® AEGISTM 2.0 is a Conventional Single Hazard Agent Releasing Unit which provides configuration flexibility in a compact footprint to protect life and assets in commercial, high-tech and industrial applications. The AEGIS 2.0 control unit has a NEMA1 enclosure and an option for door mounted Manual Release and Abort switches to avoid the additional expense of wall mounting these items.





  • Suppression Focused Control Unit
  • Triple R Redundancy Provides Maximum Protection Against Inadvertent Release
  • Agency Approvals
  • FM Approved
  • UL Listed to ANSI 864, 10th edition
  • California State Fire Marshal
  • City of New York Fire Department
  • Compliant with NFPA 72
  • Licensed for entry into Kingdom of Saudi Arabia
  • Listed for a Wide Range of Suppression Systems:
  • Kidde® ECSTM HFC-227ea and FK-5-1-12
  • Kidde® ADSTM HFC-227ea and FK-5-1-12
  • Kidde® HP CO2
  • Kidde® IG Argonite & Nitrogen
  • Kidde® FE-13TM
  • Fenwal® Spheres
  • Fenwal® BDCs
  • Kidde® INDTM Dry Chemical & WHDRTM Wet Chemical Systems
  • Sprinkler Supervisory Service
  • Deluge, Pre-Action, Foam, Foam-Water Systems
  • Combination Clean Agent plus Pre-Action System
  • Option with Door Mounted Abort and Manual Release Switches Available
  • Built-in Class A and Class B Circuitry
  • Listed for use with Kidde®, Fenwal® and Chemetron® agent release devices including Control Heads and Initiators
  • Sophisticated Programmable NACs
  • Independently Programmable Agent Releasing Circuits
  • Compact Cabinet Design Supports Large Number of Input and Output Circuits
  • 3 Detection Circuits
  • 2 Supervisory Circuits
  • Option to Use SUP 1 as Fourth Detection Circuit*
  • 1 Manual Release Circuit
  • 1 Abort Input Circuit (with 6 Abort Modes)
  • 3 Notification Appliance Circuits
  • 2 Release Circuits
  • 3 Programmable and 1 Trouble Form-C Relays
  • 1 Auxiliary Power Output (Resettable), 1 Amp
  • 5.4 Amp Power Supply Unit
  • 120/240 V, 50/60 Hz AC Input
  • Easy-to-Use User Interface and Display
  • Flexible Configuration Options
  • Password Protected
  • Digital Release Countdown
  • Battery Voltage and Charging Current Display
  • Charging Capacity of 68 AH
  • Extensive Diagnostics
  • Backwards Compatible


Conventional Fire Alarm-Suppression Control Unit
Kidde – Data Sheet
