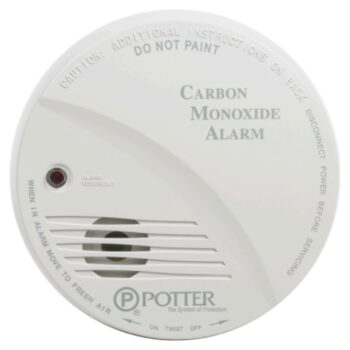

Potter CO-12/24T

Detector Gas Carbon Monoxide (CO) 4 Wire 12/24V

  • Factory New
FireAlarm.com Part #: 72284 Categories: , Manufacturer Part #: CO-12/24T Tag:


Carbon Monoxide (CO) is a toxic odorless, tasteless, colorless gas that is present whenever organic compounds are involved in combustion. Many homes utilize either propane, natural gas or wood for heat and cooking purposes and the burning of these fuels produce CO. A malfunctioning appliance or flue will fill a space with this toxic gas completely unknown to the occupants. The Potter CO 12/24 utilizes the premium Carbon Monoxide (CO) detection technology for accurate detection and false alarm immunity. The CO 12/24 will only respond to the presence of CO and will not react to other ordinary household chemicals that affect other detectors. When the CO is detected, an 85 decibel sounder and the alarm relay activate to indicate the presence of CO. The sounder can be silenced for four (4) minutes by pushing the Reset button.





  • UL listed to Standard 2075
  • 12 or 24 VDC power input
  • Low current draw
  • 85dB at 10′ sounder
  • Form C alarm and trouble relay
  • Self-testing device
  • 6-year warranty
  • Wall or ceiling mount
  • Operating temperature range:
    • 40°F – 100°F (4.4°C – 37.8°C)
    • 15% – 95% RH
  • 14-22 AWG terminal size
  • Contact rating: 0.1A – 30VDC non-latching


Carbon Monoxide CO Detector; CO 12/24
Potter – Data Sheet
