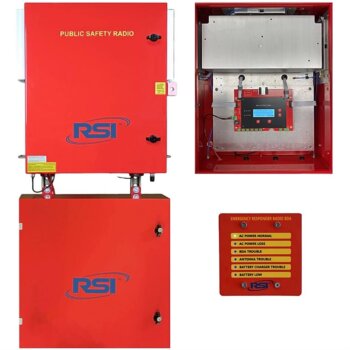

Radio Solutions SB7800M3B


Class B Channelized, Programmable Signal Booster / BDA. Dual band, 700MHz and 800MHz Public Safety Bands, 64 Channels (32 per band), 5W UL PA, 10W DL PA (5W per band), 92dB Gain.

Availability: Please Call for Availability

  • Factory New
Brand: Radio Solutions Part #: 142069 Category: Manufacturer Part #: SB7800M3BSecondary Part #: SB7800M3B


Radio Solutions Inc. Class A and Class B BDAs are high-gain, high-power, channel-selective (Class A) or band-selective (Class B) signal boosters/bi-directional amplifiers (BDA) that can be designed and customized to meet all public safety frequency band ranges in ERCES (Emergency Radio Communications Enhancement Systems) applications. They are designed to provide reliable two-way radio signal coverage inside buildings, tunnels, and other structures. The state-of-the-art DSP-based filter design combined with our industry-leading band-pass duplexer filters deliver reliable performance in even the most challenging RF environments. The product delivers high RF power with 5W rated amplifiers while maintaining the industry-leading power efficiency and reliability. The all-inclusive design includes the NFPA, IFC, and UL compliant supervisory interfaces, AC power supply, Battery Charger, and Dedicated Annunciator Panel. RSI M3 Series BDAs and power supplies have been designed to meet and exceed the published UL2524 2nd Ed. standard requirements for In-building 2-Way Emergency Radio Communication Enhancement Systems, NFPA, and IBC/IFC standards compliance—making it the best choice for public safety and other mission-critical applications.

Includes Separate DL amplifier chains for each band. Channelized and composite ALC and Gain adjustments. Selectable channel bandwidth and selectivity. Includes an NFPA compliant, supervised annunciator panel. Compliant with NFPA, IFC (all editions). Type-4 Waterproof Aluminum Enclosure. Requires ESU300A External Power Supply / Battery Backup. Designed for UL2524 Compliance ÔøΩ UL LISTING IS PENDING


Weight 59.00 lbs
Dimensions 23.23 × 8.32 × 24.00 in

Radio Solutions Inc (RSI)


Radio Solutions



Unit of Measurement

EA (Each)

Production Status


Class A and Class B Signal Boosters / BDA for ERCES


RSI - Data Sheet
