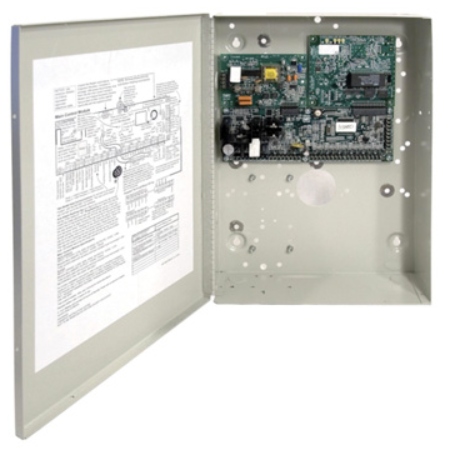

Verex 120-3602E


Main Panel NA enclosure with FEB & 230V transformer

1 in stock | Availability: Additional Units Available + Express Shipping Options

  • Factory New
Brand: Verex Part #: C05A-7272 Categories: , Manufacturer Part #: 120-3602E


As the foundation of the Monitor XL security system, the Monitor XL Control Panel holds the entire user database and all system information and operates independently in non-volatile memory. The base Prime model supports 1,000 users, while the base Enterprise model supports 4,000 users, or up to 64,000 with additional memory. Each XL panel can be configured using either the Monitor XL LCD Keypad module or Director software. The LCD Keypad also functions as a complete configuration and diagnostics tool, allowing a technician to service and configure the control panel with no need to unplug other modules. All Monitor XL modules feature a unique identifier allowing placement of up to 24 modules of any type on the RS485 bus, or up to 60 Suite Security modules on one XL panel.


Dimensions 13.70 × 10.00 × 3.34 in

UTC Fire & Security





Unit of Measurement

EA (Each)

Production Status



  • Base Prime model supports 1,000 users
  • Base Enterprise model supports 4,000 users, or up to 64,000 with additional memory
  • Can be configured using LCD Keypad module or Director software
  • Includes 12 inputs and can expand to 256 by adding LCD keypads and expander modules
  • Includes two relay outputs and can expand to 128 by adding expander with V-BUS output modules
  • Prime software supports one XL panel with a maximum of 16 doors
  • Enterprise and Enterprise Elite Software support 250 XL panels with a maximum of 32 doors each for a total of 8,000 doors per database
