4 Inch Addressable Base, XPERT 8 Card
$15.69

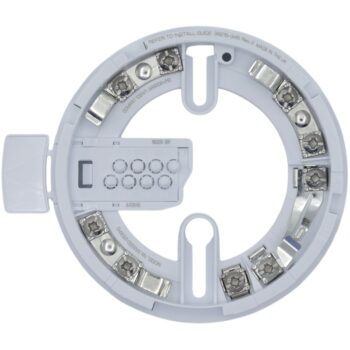

The Apollo SA5000-210APO is a Soteria UL 4-inch addressable detector base designed for use with Apollo XP95A and Soteria UL series detectors. It supports loop-powered operation and provides compatibility with UL/ULC listed S5022-based detector configurations.
This base is suitable for new installations and retrofit applications, including configurations that support isolation or isolator bypass with remote LED wiring. Addressing is achieved using the integrated XPERT 8 card system, allowing flexible and precise device addressing without external programming tools.
The SA5000-210APO mounts to standard 3" octagonal boxes for direct connection, and can also be installed on 4" octagonal or 4" square boxes using compatible UL listed mounting brackets. The base supports remote LED connections and shielded loop wiring per control panel manufacturer recommendations.
The Apollo SA5000-210APO is a Soteria UL 4-inch addressable detector base designed for use with Apollo XP95A and Soteria UL series detectors. It supports loop-powered operation and provides compatibility with UL/ULC listed S5022-based detector configurations.
This base is suitable for new installations and retrofit applications, including configurations that support isolation or isolator bypass with remote LED wiring. Addressing is achieved using the integrated XPERT 8 card system, allowing flexible and precise device addressing without external programming tools.
The SA5000-210APO mounts to standard 3″ octagonal boxes for direct connection, and can also be installed on 4″ octagonal or 4″ square boxes using compatible UL listed mounting brackets. The base supports remote LED connections and shielded loop wiring per control panel manufacturer recommendations.
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4.00 × 4.00 × 1.00 in |
| Manufacturer | Apollo Fire Detectors |
| Brand | Apollo |
| Condition | New |
| Type | Detector Base |
| Programming | XPERT Card |
| Series | |
| Production Status | Active |
Only logged in customers who have purchased this product may leave a review.
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4.00 × 4.00 × 1.00 in |
| Manufacturer | Apollo Fire Detectors |
| Brand | Apollo |
| Condition | New |
| Type | Detector Base |
| Programming | XPERT Card |
| Series | |
| Production Status | Active |
• 4-inch Soteria UL addressable detector base
• Compatible with XP95A and Soteria UL detectors
• XPERT 8 card addressing system
• Supports new installs and retrofit applications
• Remote LED connection capability
• Loop-powered operation (ID-compatible panels required)
• Shield terminal for functional earth (FE) continuity
• Polarity-sensitive L1/L2 terminals
• Anti-tamper locking provision (1.5 mm hex grub screw)
• Designed for installation per NFPA 72 and local codes
• SA5000-210APO 4″ Soteria UL Base
$54.99
$84.49
$99.49
