Detector Mounting Plate

Lead Time: 6-8 Business Days

  • Factory New
Brand: Edwards EST FireAlarm.com Part #: 007253 Categories: , , Manufacturer Part #: SIGA-DMP Tags: ,

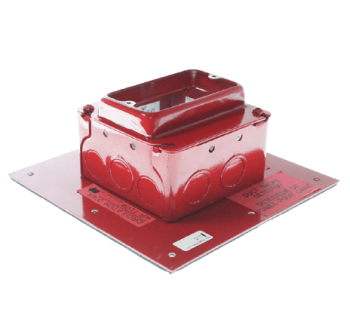

The SIGA-DMP Detector Mounting Plate is part of GE Security’s Signature Series family. It is a 7 inch (178mm) square mounting plate designed to provide convenient mounting of Signature Series intelligent smoke detectors in raised floor or plenum applications. The detector mounting plate may also be installed in low velocity ducts that have a maximum width of up to 36 inches (915mm) and a maximum height of up to 36 inches (915mm). It includes a 4 inch square junction box for wiring connections.

The SIGA-DMP is compatible with the following Signature Series smoke detectors and detector mounting bases:

  • SIGA-PS Intelligent Photoelectric Smoke Detector
  • SIGA-PHS Intelligent 3D Multisensor Smoke Detector
  • SIGA-IPHS Intelligent 4D Multisensor Smoke Detector
  • SIGA-SB Standard Base; SIGA-RB Relay Base
  • SIGA-IB Isolator Base

Mounting hardware is included along with a drilling template and rubber gasket which forms air tight seal between the mounting plate and the mounting surface. The complete assembly is finished in red epoxy powder coat for maximum durability and easy identification.

Datasheet: SIGA-DMP

More of our products from Edwards


Weight 3.0 lbs
