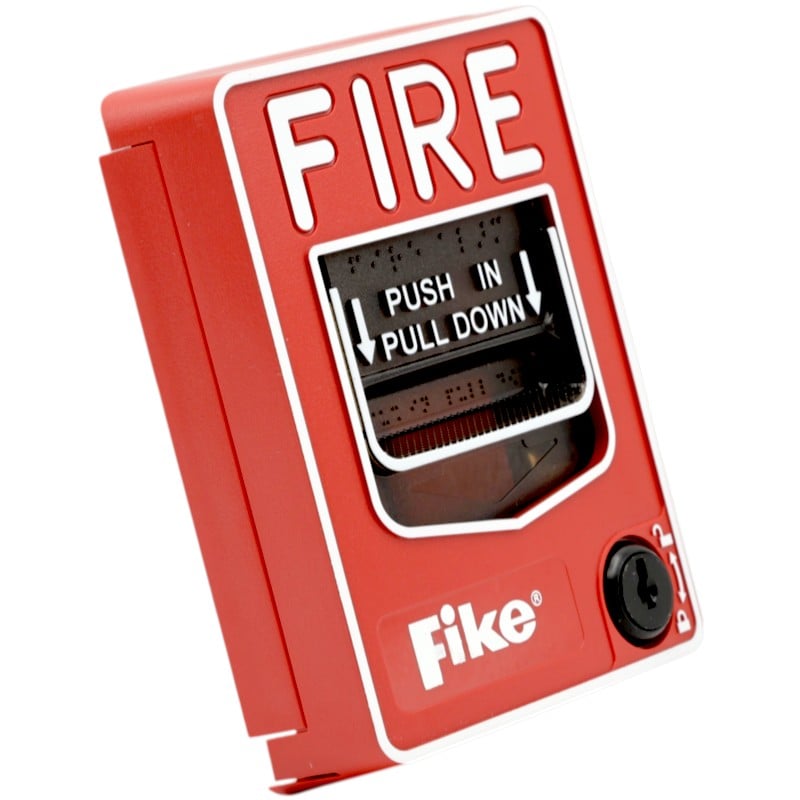

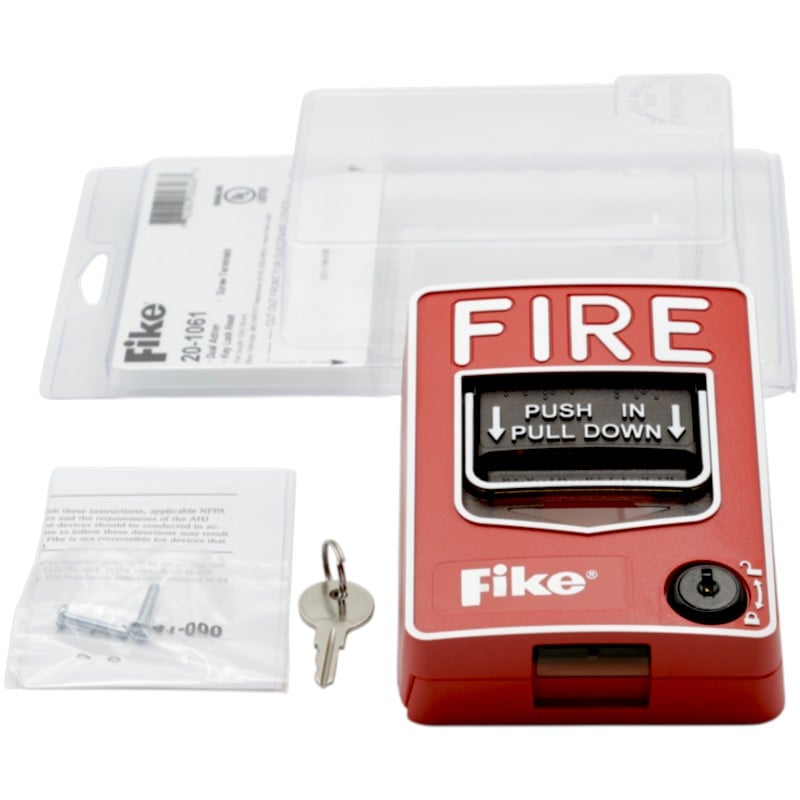

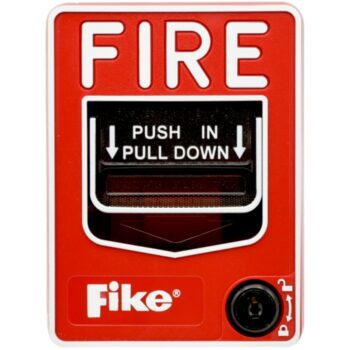

Fike 20-1061


Dual-action pull station with key lock

Availability: Estimated 1 - 2 Weeks

  • Factory New
Brand: Fike Part #: 51061 Categories: , Manufacturer Part #: 20-1061 Tag:


The Fike conventional manual pull stations are available in either a single‐action or dual‐action version. They are designed to provide a non‐coded alarm initiating input signal to the associated Fike conventional or intelligent control panels via a normally open (N/O) switch contact.


Weight 0.3 lbs
Dimensions 1.39 × 4.12 × 5.50 in

Fike Corporation





Unit of Measurement

EA (Each)

Production Status



  • Aesthetically pleasing, highly visible design and color
  • Attractive contoured shape and light textured finish
  • Single Pole, Single Throw (SPST) normally open (N/O) switch contacts
  • Meets ADA 5 lb. maximum pull‐force
  • Meets ADAAG controls and operating mechanism guidelines (section 4.1.3[13])
  • Meets UL 38, Standard for Manually Activated Signaling Boxes
  • Operation handle features white arrows showing basic operation direction for non‐English-speaking persons
  • Braille text included in finger‐hold area of operation handle and across top of handle
  • Resettable with hex wrench (single‐action) or key (dual‐action)

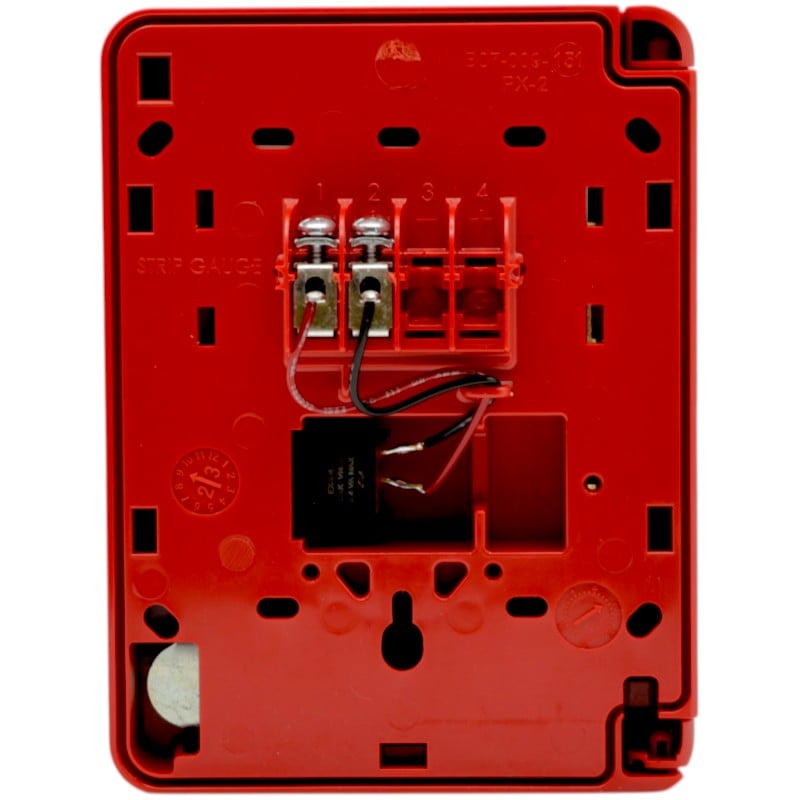

  • Station can be opened for inspection and maintenance without initiating an alarm
  • Can be surface or semi‐flush mounted
  • Spanish version (FUEGO) available
  • Product ID label viewable by simply opening the cover
  • The words “NORMAL” and “ACTIVATED” are molded into the plastic adjacent to the alarm switch (located inside)

Conventional Manual Pull Station

Fike - Data Sheet

Conventional Manual Pull Stations

Fike - Data Sheet
