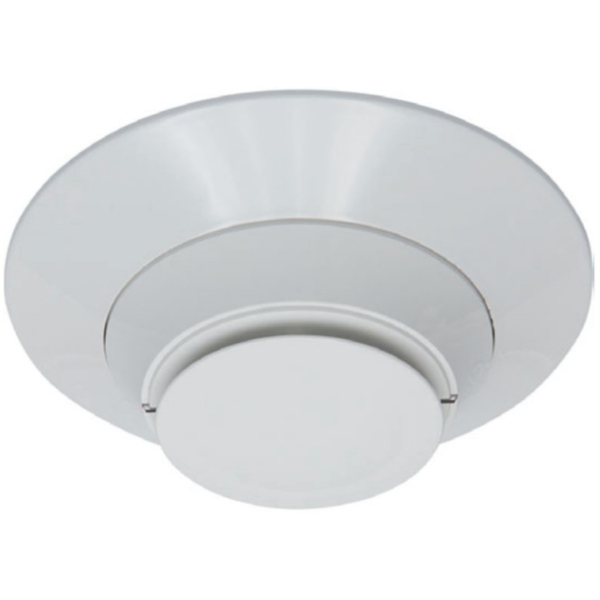

Fike FIK-2351


White, low‐profile intelligent photoelectric sensor

Availability: Please Call for Availability

  • Factory New
Brand: Fike Part #: 131600 Categories: , Manufacturer Part #: FIK-2351Secondary Part #: IDP-PHOTO-W


The Fike‐2351 Series photoelectric smoke detectors are designed for both performance and aesthetics. Detector sensitivity can be programmed in the control panel software, and sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with rotary decimal address switches, providing exact detector location for selective maintenance when chamber contamination reaches an unacceptable level. Dual electronic thermistors add 135°F (57°C) fixed temperature thermal sensing on the FIK‐2351T. The FIK‐2351R is a remote test capable detector for use with the DNR Series duct detector housings.


Weight 0.21 lbs

Fike Corporation





Unit of Measurement

EA (Each)

Production Status



  • Designed to meet UL 268 7th Edition
  • Addressable by device
  • Rotary, decimal addressing
  • Two‐wire SLC connection
  • LEDs blink every time the unit is polled
  • 360°‐field viewing angle of the visual alarm indicators (two bi‐colored LEDs); LEDs blink green in Normal condition and turn on steady red in Alarm
  • Integral communications and built‐in device type identification
  • Remote test feature from the panel
  • Built‐in functional test switch activated by an external magnet
  • Walk test with address display
  • Designed for direct‐surface or electrical box mounting
  • Optional remote, single‐gang LED accessory
  • Optional sounder, relay, and isolator bases
  • Plugs into a separate base for ease of installation and maintenance

FIK‐2351 SERIES Addressable Photoelectric Smoke Detectors


Fike - Data Sheet

FIK-2351 Intelligent Photoelectric Smoke Sensors


Fike - Installation and Maintenance Manual
