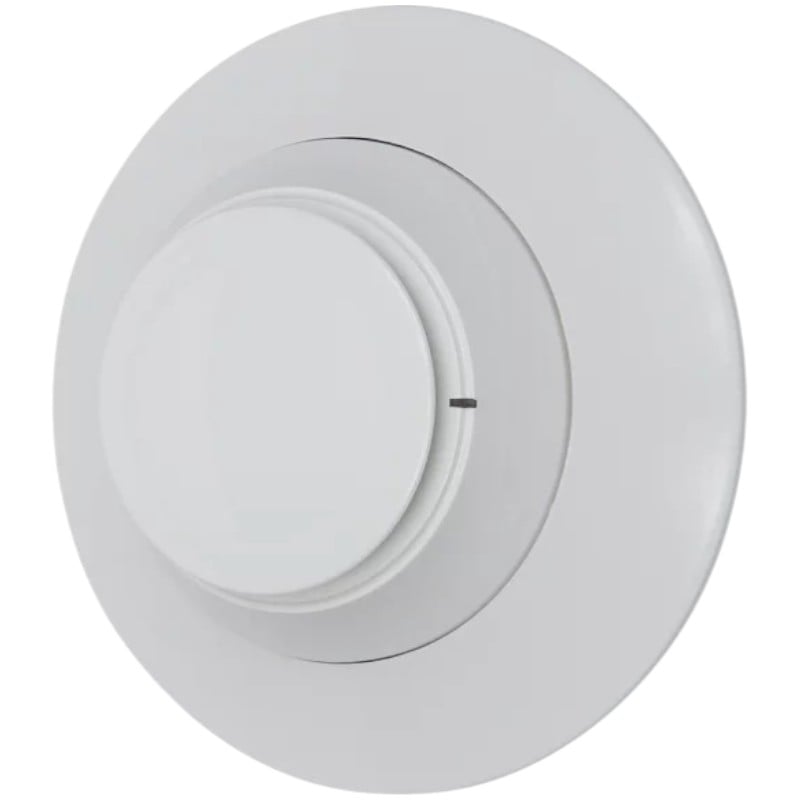

Addressable Photoelectric Smoke Detector
$64.99
The Fire-Lite SD365 is an intelligent plug-in addressable photoelectric smoke detector designed exclusively for use with compatible Fire-Lite addressable fire alarm control panels. It features a modern low-profile housing and an enhanced optical sensing chamber engineered to detect smoke from a wide range of combustion sources in compliance with UL 268 7th Edition requirements.
The SD365 uses rotary decimal address switches for precise point identification, enabling emergency personnel to quickly locate the alarmed device. Two integral LEDs provide local visual indication, blinking during polling and latching steady in alarm.
The detector plugs into a separate intelligent base for simplified installation and maintenance, allowing interchangeability with compatible photoelectric, thermal, and specialty sensors. Sensitivity can be tested through the fire alarm control panel in accordance with NFPA 72 inspection and testing requirements.
The Fire-Lite SD365 is an intelligent plug-in addressable photoelectric smoke detector designed exclusively for use with compatible Fire-Lite addressable fire alarm control panels. It features a modern low-profile housing and an enhanced optical sensing chamber engineered to detect smoke from a wide range of combustion sources in compliance with UL 268 7th Edition requirements.
The SD365 uses rotary decimal address switches for precise point identification, enabling emergency personnel to quickly locate the alarmed device. Two integral LEDs provide local visual indication, blinking during polling and latching steady in alarm.
The detector plugs into a separate intelligent base for simplified installation and maintenance, allowing interchangeability with compatible photoelectric, thermal, and specialty sensors. Sensitivity can be tested through the fire alarm control panel in accordance with NFPA 72 inspection and testing requirements.
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4.00 × 2.00 × 2.00 in |
| Manufacturer | Honeywell |
| Brand | Fire-Lite |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Construction | Plastic |
| Detection Method | Photoelectric |
| Programming | Rotary Dials |
| Material Qualities | Fire Resistant |
| Series | |
| Compatibility |
Only logged in customers who have purchased this product may leave a review.
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4.00 × 2.00 × 2.00 in |
| Manufacturer | Honeywell |
| Brand | Fire-Lite |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Construction | Plastic |
| Detection Method | Photoelectric |
| Programming | Rotary Dials |
| Material Qualities | Fire Resistant |
| Series | |
| Compatibility |
• Intelligent addressable photoelectric smoke detection
• Compatible with LiteSpeed and CLIP protocol systems
• Rotary decimal addressing for device-level point ID
• Enhanced optical sensing chamber
• Designed to meet UL 268 7th Edition
• Factory preset at 1.5% nominal sensitivity (panel threshold)
• Two integral LEDs (blink on poll, latch in alarm)
• Remote test capability from panel
• Built-in magnet-activated functional test switch
• Built-in tamper-resistant feature
• Removable cover with insect-resistant screen
• Low standby current
• Plug-in design with separate mounting base
• SD365 Detector Head
$24.79
