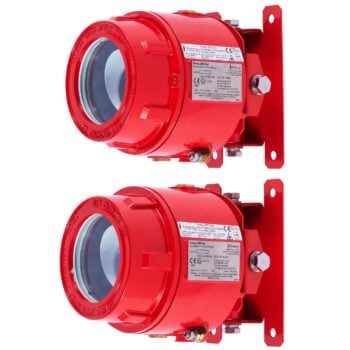

Fireray 3000-026


Fireray® 3000 Additional Detector Pack

Availability: Estimated 2 - 3 Weeks

  • Factory New
Brand: Fireray Part #: 41172 Categories: , Manufacturer Part #: 3000-026


The Fireray® 3000 Exd is ideally suited for the protection of large areas, with potentially explosive atmospheres, against smoking fires. Fireray® 3000 Exd comprises an infrared transmitter and a receiver, both of which are ATEX-certified for use in Group 2 hazardous areas. There is a separate, safe area, wall-mounted remote/low level control unit to allow adjustment and testing from a convenient non-hazardous location.

The product is designed for large enclosures within oil rigs, refineries, ordnance stores and similar premises. It provides an early warning of smouldering or strongly smoke-generative fires, which may not be picked up by flame detectors installed in many hazardous areas.


Weight 5.50 lbs






Unit of Measurement

EA (Each)

Production Status



  • Separate transmitter and receiver unit certified to Exd
  • Allows for 2 Detectors per System Controller
  • Range 33ft to 262ft, (10 to 80 metres) configurable per set of Detectors
  • Integral Laser Alignment in Receiver
  • 2-wire Interface between Controller and Receiver
  • Separate Alarm and Trouble Relays per Detector
  • Remote/low Level Controller with LCD display (Safe Area)
  • Programmable Sensitivity and Fire/Fault delay
  • Automatic Gain Control (AGC) for drift compensation
  • First Fix concept for transmitter, reciever and controller
  • Multiple cable gland knockouts for ease of wiring
  • Transmitter can be powered from Controller
  • Complies with ATEX
  • Light Cancellation Technology

Fireray 3000 Exd; Flameproof Optical Beam Smoke Detector


Fireray - Data Sheet

Exd Optical Beam Smoke Detector


Fireray - User Guide
