FlashScan Monitor Module, Class a or B IDC
$100.49

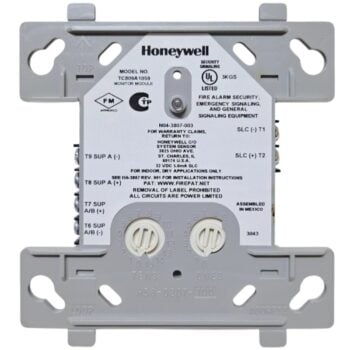

The Honeywell TC809A1059 is a FlashScan intelligent addressable monitor module designed for use with compatible Honeywell fire alarm control panels. It supervises a circuit of normally open dry-contact initiating devices such as manual pull stations, waterflow switches, conventional heat detectors, or other alarm and supervisory contacts.
The TC809A supports both NFPA Style D (Class A) and Style B (Class B) Initiating Device Circuits (IDC). It mounts to a standard 4-inch square electrical box and is powered directly from the two-wire SLC loop, requiring no additional external power.
Addressing is accomplished via built-in rotary switches for precise point identification (01–159 on FlashScan loops; 01–99 on CLIP loops). The module includes a panel-controlled LED that flashes green during normal communication (programmable) and latches steady red on alarm.
FlashScan protocol enhances system response speed by grouping device communications and prioritizing new event reporting.
The Honeywell TC809A1059 is a FlashScan intelligent addressable monitor module designed for use with compatible Honeywell fire alarm control panels. It supervises a circuit of normally open dry-contact initiating devices such as manual pull stations, waterflow switches, conventional heat detectors, or other alarm and supervisory contacts.
The TC809A supports both NFPA Style D (Class A) and Style B (Class B) Initiating Device Circuits (IDC). It mounts to a standard 4-inch square electrical box and is powered directly from the two-wire SLC loop, requiring no additional external power.
Addressing is accomplished via built-in rotary switches for precise point identification (01–159 on FlashScan loops; 01–99 on CLIP loops). The module includes a panel-controlled LED that flashes green during normal communication (programmable) and latches steady red on alarm.
FlashScan protocol enhances system response speed by grouping device communications and prioritizing new event reporting.
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.25 × 4.00 × 4.50 in |
| Condition | New |
| Brand | Honeywell |
| Production Status | Discontinued |
| Type | Intelligent / Addressable |
| Input Voltage | 15–32 VDC |
Only logged in customers who have purchased this product may leave a review.
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.25 × 4.00 × 4.50 in |
| Condition | New |
| Brand | Honeywell |
| Production Status | Discontinued |
| Type | Intelligent / Addressable |
| Input Voltage | 15–32 VDC |
• Addressable monitor module for dry-contact initiating devices
• Supports Style D (Class A) or Style B (Class B) IDC wiring
• Powered directly from two-wire SLC loop
• Rotary switch addressing (01–159 FlashScan; 01–99 CLIP)
• Built-in type identification for automatic panel recognition
• Panel-controlled LED (green flash normal, red latch on alarm)
• High noise (EMF/RFI) immunity
• SEMS screws with clamping plates for secure wiring
• Includes 47 kΩ end-of-line resistor for Class B applications
• TC809A1059 Monitor Module
• 47 kΩ End-of-Line Resistor
• Mounting hardware
