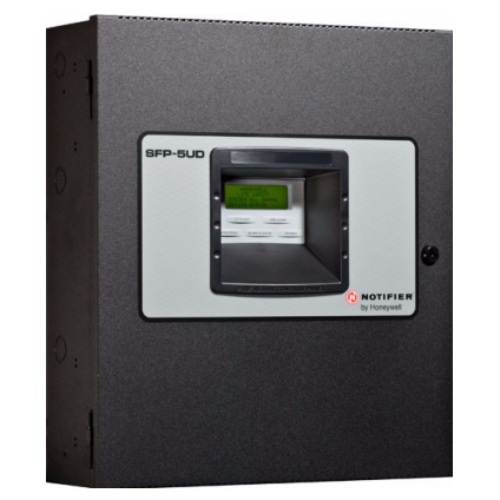

Notifier SFP-5UD


Five Zone Fire Alarm Control Panel

Availability: Estimated 6 - 8 Business Days

  • Factory New
  • Material Obsolete
Brand: Notifier Part #: 72107 Categories: , , Manufacturer Part #: SFP-5UD


The SFP-5UD is a five-zone FACP (Fire Alarm Control Panel) and the SFP-10UD(E) is a ten-zone FACP. These control panels provide reliable fire signaling protection for small to medium-sized commercial, industrial, and institutional buildings. Both panels include built-in communicators for Central Station Service and remote upload/download. Each of these FACPs is compatible with System Sensor’s microprocessor-based i3 series detectors. These conventional smoke detectors can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory “freeze” signal when the ambient temperature falls below the detector rating. Additionally, both the SFP-5UD and SFP10UD are compatible with conventional input devices such as two- and four-wire smoke detectors, pull stations, waterflow devices, tamper switches, and other normally-open contact devices.




Production Status

Product Notes

Replacement: MS-5UD-3


  • Listed to UL Standard 864, 9th edition.
  • Built-in DACT (Digital Alarm Communicator/Transmitter).
  • Style B (Class B) IDC (Initiating Device Circuit)

– SFP-5UD – five IDCs.

– SFP-10UD – ten IDCs.

  • Style Y (Class B) NAC (Notification Appliance Circuit) – special application power

– SFP-5UD – four NACs.

– SFP-10UD – four NACs.

  • Notification Appliances may be programmed as

– Silence Inhibit.

– Auto-Silence.

– Strobe Synchronization for System Sensor, Wheelock, Gentex, Faraday, or Amseco devices.

– Selective Silence (horn-strobe mute).

– Temporal or Steady Signal.

– Silenceable or Nonsilenceable.

  • Optional N-CAC-5X Style Z (Class A) Converter Module for NACs and IDCs (2 required for SFP-10UD).
  • Form-C Relays for Alarm, Trouble and Supervisory – Contact Ratings 2.0 A@ 30 VDC or 30 VAC (resistive).
  • 3.0 A total system current for SFP-5UD.
  • 7.0 A total system current for SFP-10UD.
  • Optional Dress Panel DP-51050 (red)
  • Optional Dress Panel DP-51050B (black).
  • Optional Trim Ring TR-CE/-B for semi-flush mounting.
  • 24 volt operation.
  • Low AC voltage sense.
  • Alarm Verification.
  • PAS (Positive Alarm Sequence).
  • Automatic battery trickle charger.
  • Up to eight ANN-BUS annunciators:

– Optional 8 zone Relay Module N-ANN-RLY.

– Optional LED Annunciator Module N-ANN-LED,

– Optional Remote LCD Annunciator N-ANN-80.

– Optional Remote Printer Gateway N-ANN-S/PG.

– Optional LED Annunciator Driver N-ANN-I/O.

  • Optional 4XTM module (conventional reverse polarity/city box transmitter).

Five & Ten Zone Fire Alarm Control Panel; SFP-5UD/SFP-10UD(E)


Notifier – Data Sheet
