$19.59

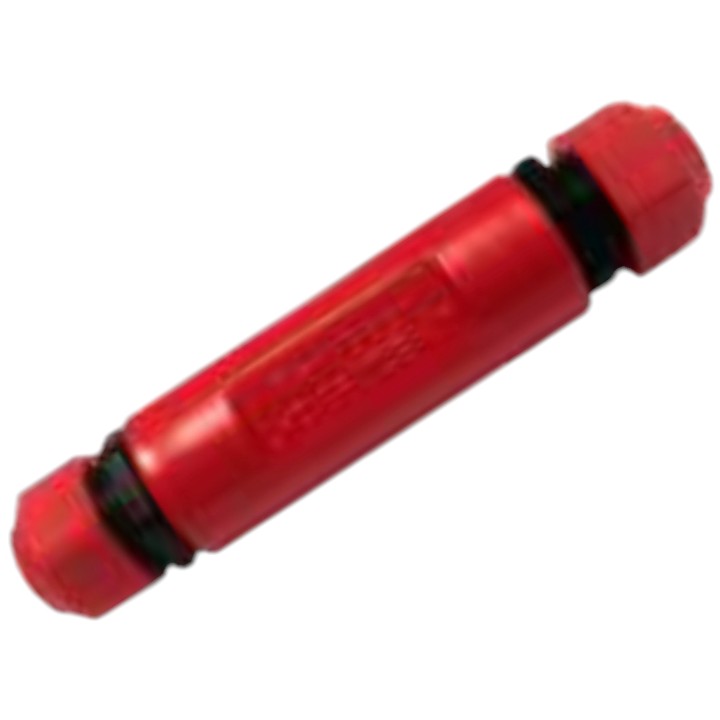

The RG1126 Linear Heat Detection (LHD) Splice Kit is a weatherproof, all-in-one solution designed to create secure and reliable inline splices in linear heat detection cable systems. Engineered to address one of the most common failure points in LHD installations, this kit simplifies the splicing process while improving long-term system reliability.
This splice kit eliminates the need for traditional splicing methods such as tape, screw terminals, or specialized tools. It utilizes quick splice in-line connectors combined with a sealed splice barrel and strain relief fittings to create a durable, NEMA 4-rated connection suitable for both indoor and outdoor environments.
Designed for versatility, the RG1126 is approved for use with all brands of linear heat detection cables. Its wide operating temperature range makes it suitable for demanding environments, including commercial freezer applications where extreme low temperatures are present.
The RG1126 Linear Heat Detection (LHD) Splice Kit is a weatherproof, all-in-one solution designed to create secure and reliable inline splices in linear heat detection cable systems. Engineered to address one of the most common failure points in LHD installations, this kit simplifies the splicing process while improving long-term system reliability.
This splice kit eliminates the need for traditional splicing methods such as tape, screw terminals, or specialized tools. It utilizes quick splice in-line connectors combined with a sealed splice barrel and strain relief fittings to create a durable, NEMA 4-rated connection suitable for both indoor and outdoor environments.
Designed for versatility, the RG1126 is approved for use with all brands of linear heat detection cables. Its wide operating temperature range makes it suitable for demanding environments, including commercial freezer applications where extreme low temperatures are present.
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 5.50 × 1.37 × 1.37 in |
| Manufacturer | Protec Fire Detection PLC |
| Brand | Safe Fire Detection |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Material | CPCV |
| Temperature Rating | -75°F(-60°C) to 365°F(185°C) |
| Compatibility | |
| Rating | NEMA4 |
| Listings & Approvals | CE, CSFM, UL |
| Production Status | Active |
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 5.50 × 1.37 × 1.37 in |
| Manufacturer | Protec Fire Detection PLC |
| Brand | Safe Fire Detection |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Material | CPCV |
| Temperature Rating | -75°F(-60°C) to 365°F(185°C) |
| Compatibility | |
| Rating | NEMA4 |
| Listings & Approvals | CE, CSFM, UL |
| Production Status | Active |
• Creates secure inline splices for linear heat detection cables
• Eliminates need for tape, screw terminals, or specialized tools
• Provides weatherproof protection for indoor and outdoor installations
• Reduces installation time and complexity with quick splice connectors
• Improves long-term reliability at common LHD failure points
• Suitable for extreme temperature environments including freezer applications
• Compatible with all LHD cable brands
