$3,910.00

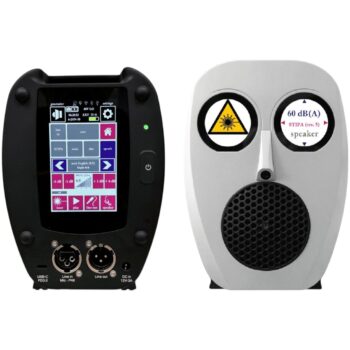

The Bedrock BTB115 is an advanced acoustic signal generator that supports a variety of test signals, including STIPA and full STI. Designed to match a human talker in terms of directivity pattern and other characteristics, the BTB115 Advanced Talkbox removes the hassle out of creating a calibrated test setup.
| Weight | 9 lbs |
|---|---|
| Dimensions | 12 × 12 × 9 in |
| Manufacturer | SDi Fire |
| Brand | SDi Bedrock |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Weight | 9 lbs |
|---|---|
| Dimensions | 12 × 12 × 9 in |
| Manufacturer | SDi Fire |
| Brand | SDi Bedrock |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
• 3 Capacitive touch displays to control the device from either the front or back
• Effective frequency range 80-16,000 Hz
• Playback of STIPA and full STI signals according to IEX-61268 rev.5 (2020)
• Playback of noise signals (pink/white) for quick evaluation of frequency transfer functions.
• Playback of sine waves and sweeps.
• Spoken messages for announcing the beginning and end of test sessions
• Playback of user-uploaded signals, calibrated on-the-fly through the powerful internal DSP.
• Integrated class 2 laser pointer and laser distance meter (range 0.03-1.50m). SPL at
• the test position is calculated from the distance.
• Wireless control via WiFi or Bluetooth
• Acoustic output level at 1 meter distance (vocal efffort) adjustable in 1 dB steps between 54 and 72 dB
• Noise, STIPA and Full STI signals conform to target spectra within 1 dB (measured at 1/3 octave resolution).
• Line output adjustable in 1 dB steps between -30 and -12 dBU
