SDi Checker PC01

Power Checker a High-Precision Load Testing System

  • Factory New
Brand: Checker Part #: 150703 Categories: , Manufacturer Part #: PC01 Tag:

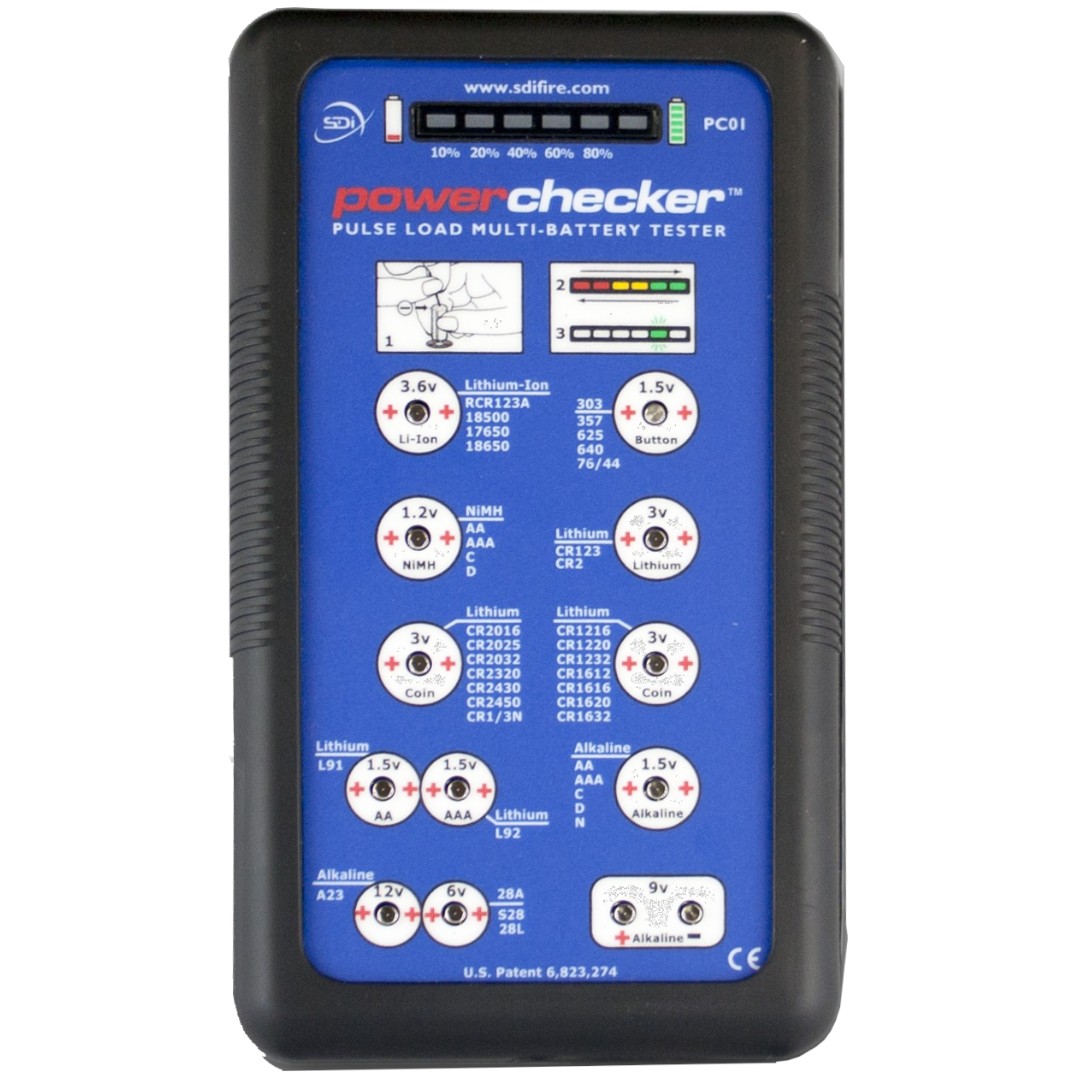

Powerchecker™ provides a comprehensive means of testing the state of charge or state of power for more than 30 battery types. This microprocessor-controlled instrument is designed for commercial or home use and tests popular primary (non-rechargeable) and rechargeable batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Battery types are clearly labelled next to appropriate contacts. The negative test lead/probe conveniently stores in seam at side. It’s easy to use, and test results are easy to understand. Tests NiMH, Li-Ion, alkaline, lithium, coin cell, button type and more. Requires 4 AA batteries (not included).


Weight 0.90 lbs
Dimensions 8.00 × 4.50 × 1.25 in

SDi Fire





Unit of Measurement


Production Status



  • Computes State of Charge (SOC) for more than 40 battery types
  • Easy to use – no switches or settings
  • Emergency lighting / Battery back-up
  • Test battery condition – quickly and easily identifies weak or failing batteries
  • Patented high accuracy Pulse Load Test – battery safe, non-invasive
  • Measures battery performance under load, not just voltage or internal resistance
  • Ideal for wireless detectors
  • Ideal for battery management and cell matching – reduce costs and increase reliability
  • Requires 4 AA Batteries (not included)
  • Made in U.S.A Patents 6,823,724 and D569285

Powerchecker pulse load Multi-Battery Tester
