This product has been replaced by

Siemens PAD-5-MB

PAD-5 main board (with one [1] adapter plate)

Manufacturer Part #: PAD-5-MB

Siemens PAD-5-MB

$932.36

PAD-5 main board (with one [1] adapter plate)

Availability: Estimated 5 days

Condition: New

Brand: Siemens

Status: Active

SKU: 47957

Manufacturer Part #: PAD-5-MB

Secondary Part #: S54339-A5-A1

Description

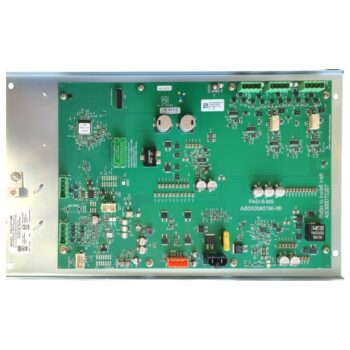

The main board (Model PAD-5-MB) used with PAD-5 notification-extender units provides remote, auxiliary power for signaling appliances. Model PAD-5-MB also allows for expansion of notification appliances (NACs) that plug into each main board. Each PAD-5-MB main board connects via the P2 loop of a Siemens `X’-series Device Loop Card (Model XDLC) connected to the Siemens Modular fire-alarm control panel (FACP). Up to 32 Siemens PAD-5 main boards or mixture expansion cards can connect to one (1) Model XDLC at a time. Additionally, Model PAD-5-MB has one (1) address, and is programmed with the Siemens Device Programmer / Test Unit, Model DPU.

Documents

Description

The main board (Model PAD-5-MB) used with PAD-5 notification-extender units provides remote, auxiliary power for signaling appliances. Model PAD-5-MB also allows for expansion of notification appliances (NACs) that plug into each main board. Each PAD-5-MB main board connects via the P2 loop of a Siemens `X’-series Device Loop Card (Model XDLC) connected to the Siemens Modular fire-alarm control panel (FACP). Up to 32 Siemens PAD-5 main boards or mixture expansion cards can connect to one (1) Model XDLC at a time. Additionally, Model PAD-5-MB has one (1) address, and is programmed with the Siemens Device Programmer / Test Unit, Model DPU.

Additional information

Weight	2 lbs
Manufacturer	Siemens Industry, Inc.
Brand	Siemens
Condition	New
Unit of Measurement	EA (Each)
Production Status	Active

Reviews

There are no reviews yet.

Be the first to review “Siemens PAD-5-MB”

You must be logged in to post a review.

FACP Accessories: PAD-5 Addressable Power Supply Unit

Siemens - Data Sheet

Intelligent Notification and Auxiliary Power Expander

Siemens - Installation Sheet

Attributes

Weight	2 lbs
Manufacturer	Siemens Industry, Inc.
Brand	Siemens
Condition	New
Unit of Measurement	EA (Each)
Production Status	Active

Product Features

Intelligent controller resides on SLC loop
Four (4) ‘Class A’ or eight (8) ‘Class B’ NACs that can be mixed
‘Class X’ wiring-isolator device
Temperature-compensated battery-charging circuits
‘Trouble’ relays for remote monitoring
Diagnostic light-emitting diodes (LEDs)
Alternating Current (AC) power connection
