Mini Monitor Module, Dry Contact Supervision
$83.49

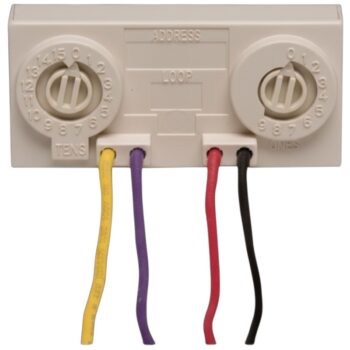

The Silent Knight IDP-MINIMON Miniature Monitor Module is an addressable interface module designed to connect conventional contact devices to compatible Silent Knight intelligent fire alarm control panels. The module allows the control panel to supervise and monitor the status of external devices such as waterflow switches, manual pull stations, and other contact-based initiating devices.
Its compact and lightweight design allows the module to be installed directly behind the monitored device inside a standard single-gang electrical box. This simplifies wiring and helps reduce installation space requirements in retrofit or space-constrained installations.
The IDP-MINIMON communicates with the fire alarm control panel using analog addressable communication and includes rotary address switches for quick and accurate device addressing during installation. The module supports Class B supervised initiating device circuits and can also monitor conventional 4-wire smoke detectors for alarm and trouble conditions.
Designed for flexible field installation, the module provides reliable supervision of connected devices while maintaining system communication with compatible Silent Knight IFP-series fire alarm panels.
The Silent Knight IDP-MINIMON Miniature Monitor Module is an addressable interface module designed to connect conventional contact devices to compatible Silent Knight intelligent fire alarm control panels. The module allows the control panel to supervise and monitor the status of external devices such as waterflow switches, manual pull stations, and other contact-based initiating devices.
Its compact and lightweight design allows the module to be installed directly behind the monitored device inside a standard single-gang electrical box. This simplifies wiring and helps reduce installation space requirements in retrofit or space-constrained installations.
The IDP-MINIMON communicates with the fire alarm control panel using analog addressable communication and includes rotary address switches for quick and accurate device addressing during installation. The module supports Class B supervised initiating device circuits and can also monitor conventional 4-wire smoke detectors for alarm and trouble conditions.
Designed for flexible field installation, the module provides reliable supervision of connected devices while maintaining system communication with compatible Silent Knight IFP-series fire alarm panels.
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 1.30 × 2.80 × 0.50 in |
| Manufacturer | Honeywell |
| Brand | Silent Knight |
| Unit of Measurement | EA (Each) |
| Condition | New |
| Type | Intelligent Module |
| Style | Input, Switch Monitor |
| Programming | Rotary Dials |
| Series | |
| Production Status | Active |
Only logged in customers who have purchased this product may leave a review.
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 1.30 × 2.80 × 0.50 in |
| Manufacturer | Honeywell |
| Brand | Silent Knight |
| Unit of Measurement | EA (Each) |
| Condition | New |
| Type | Intelligent Module |
| Style | Input, Switch Monitor |
| Programming | Rotary Dials |
| Series | |
| Production Status | Active |
• Addressable monitor module for a single contact device
• Compact design for mounting behind monitored devices
• Supports Class B supervised initiating device circuits
• Rotary address switches for easy device addressing
• Analog communication with Silent Knight panels
• Fully supervised monitoring of connected devices
• IDP-MINIMON Addressable Monitor Module
