Addressable Monitor Module, Dry Contact Supervision
$47.49

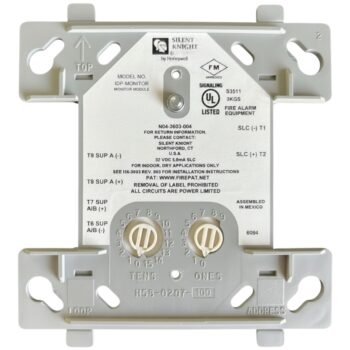

The Silent Knight IDP-MONITOR is an addressable monitor module designed to interface dry-contact initiating devices with compatible Silent Knight IFP-series intelligent fire alarm control panels. The module supervises an initiating device circuit and reports alarm, open, or normal conditions to the control panel through the signaling line circuit (SLC).
The module is typically used to monitor contact-based devices such as manual pull stations, waterflow switches, and other initiating devices. It supports both Class A (Style D) and Class B (Style B) supervised wiring configurations, providing installation flexibility in new or retrofit systems.
The device includes rotary address switches for easy addressing during installation and features a panel-controlled status LED that flashes green during normal communication and illuminates red during alarm conditions. The module mounts inside a standard 4-inch square electrical box and includes screw terminals for field wiring connections.
The Silent Knight IDP-MONITOR is an addressable monitor module designed to interface dry-contact initiating devices with compatible Silent Knight IFP-series intelligent fire alarm control panels. The module supervises an initiating device circuit and reports alarm, open, or normal conditions to the control panel through the signaling line circuit (SLC).
The module is typically used to monitor contact-based devices such as manual pull stations, waterflow switches, and other initiating devices. It supports both Class A (Style D) and Class B (Style B) supervised wiring configurations, providing installation flexibility in new or retrofit systems.
The device includes rotary address switches for easy addressing during installation and features a panel-controlled status LED that flashes green during normal communication and illuminates red during alarm conditions. The module mounts inside a standard 4-inch square electrical box and includes screw terminals for field wiring connections.
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.25 × 4.00 × 4.50 in |
| Manufacturer | Honeywell |
| Brand | Silent Knight |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Type | Intelligent Module |
| Function | Input, Monitor |
| Programming | Rotary Dials |
| Series | |
| Production Status | Active |
Only logged in customers who have purchased this product may leave a review.
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.25 × 4.00 × 4.50 in |
| Manufacturer | Honeywell |
| Brand | Silent Knight |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Type | Intelligent Module |
| Function | Input, Monitor |
| Programming | Rotary Dials |
| Series | |
| Production Status | Active |
• Addressable monitor module for Silent Knight intelligent fire alarm systems
• Interfaces dry-contact initiating devices such as pull stations and waterflow switches
• Supports supervised Class A (Style D) or Class B (Style B) wiring
• Monitors conventional contact closure devices for alarm conditions
• Panel-controlled LED indicates device status and alarm conditions
• Rotary address switches simplify device addressing
• Fully supervised initiating device circuit
• Compact design mounts inside standard electrical boxes
• SEMS screw terminals allow quick field wiring
• IDP-MONITOR addressable monitor module
