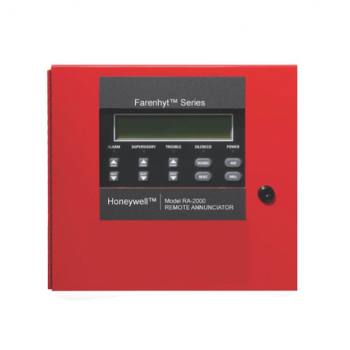

Silent Knight RA-2000


Remote Annunciator, Red

Availability: Please Call for Lead Time

  • Factory New
Brand: Silent Knight Part #: 45196 Category: Manufacturer Part #: RA-2000


The RA-2000 remote annunciator can be used to operate and program the IFP-2000 or RPS-2000 FACP. The RA-2000’s keypad and display match the built-in annunciator of the IFP-2000 control panel.

The remote annunciator connects to the control panel via the RS-485 SBUS. When the system is in normal operation and has AC power, the Power LED is lit all all other LEDs are off. The other LEDs turn on as alarms, supervisories, troubles, and system silenced occur.

The RA-2000 can be surface or flush mounted and is also available in gray color as RA-2000GRAY.


Weight 5 lbs
Dimensions 12.25 × 11.5 in







  • 160-character backlit LCD display (4 lines with 40 characters each)
  • Operation an appearance is identical to IFP-2000 built-in annunciator
  • Tactile/audible feedback when key is pressed on annunciator
  • RS-485 SBUS interface to panel
  • Can be flush or surface mounted. Trim ring (P/N RA-100TR or RA2000-GRAYTR) available for surface mounting
  • Initiate and end fire drills with a single key press
  • Multi-panel displays can display the status and event history of all the panels they are assigned in a network
  • Multi-panel annunciators will sound the highest priority tone from the panel it is assigned to
  • View current status by alarms, supervisories, or troubles
  • On-board piezo sounder audibly indicated alarms, troubles, and supervisories
  • Five Status LEDs for; alarms, supervisory, trouble, silence and AC power indications
  • Four programmable function keys
  • Available in red or gray color
  • Wiring lengths up to 6000 ft. from the control panel
  • UL listed, complies with NFPA 72
  • FM approved
  • CSFM listed
  • MEA approved


Silent Knight RA-2000 Data Sheet
