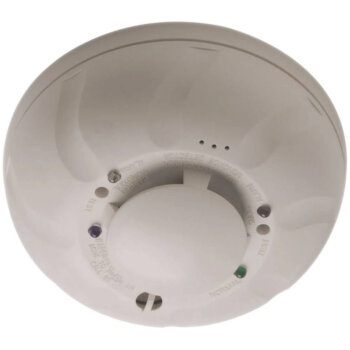

System Sensor COSMO-4W

$188.08

12/24 volt, 4-wire, system-connected, combination carbon monoxide/smoke detector with RealTest technology

Available with Lead Time

  • Factory New
Brand: System Sensor FireAlarm.com Part #: 031297 Categories: , , Manufacturer Part #: COSMO-4W Tags: ,

Description

The i4 Series combines CO and smoke detection into one device, requiring less wiring and fewer back boxes than two separate devices. The i4 Series is compatible with i3 (2WTA-B or 4WTA-B), so an attractive CO monitoring solution can easily be retrofitted into existing i3 installations. The i4 Series CO cell can be easily replaced at end-of-life, resulting in a much lower life cost than having to replace the entire detector.

Information

Weight 0.60 lbs
Dimensions 5.50 × 5.50 × 2.50 in
Condition

Features

  • Single device for CO and smoke detection that uses less wiring and fewer junction boxes
  • Compatible with a wide range of control panels with the use of the required i4 Interface Module.
  • Sends distinct smoke and CO signals to the panel
  • Sounds Temporal 3 for smoke and Temporal 4 for CO
  • Built-in 85dB sounder
  • LEDs display both CO and smoke status
  • External IR LED provides extended range sensitivity testing
  • Versatile mounting allows for wall or ceiling placement
  • Easily replaceable electrochemical CO cell with 10-year end-of-life timer that signals the panel and chirps to alert the homeowner
  • RealTest® enables functional test using canned CO
  • Drift compensation and smoothing algorithms provide false alarm immunity
  • Compatible with SENS-RDR sensitivity tester
  • Full agency compliance with UL 268 and UL 2075

Resources

i4 Series Combination CO/Photoelectric Smoke Detector
System Sensor – Data Sheet
i4 Series Combination Carbon Monoxide (CO) / Photoelectric Smoke Detector
System Sensor – Installation and Maintenance Instructions
CO Response, i4 Series Combination CO/Smoke Detector
System Sensor – Safety Bulletin
