Voice Evac Speaker, White Wall Ceiling

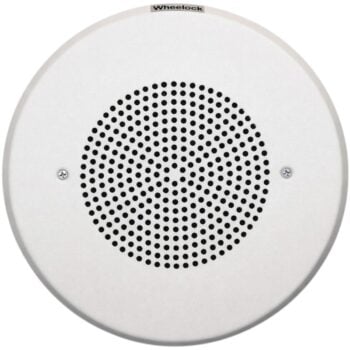

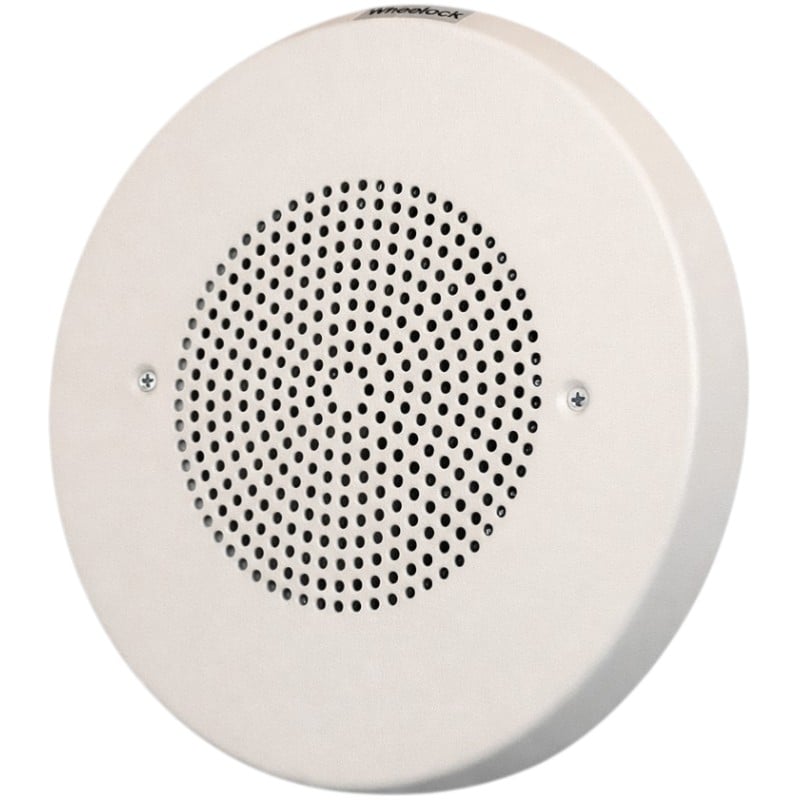

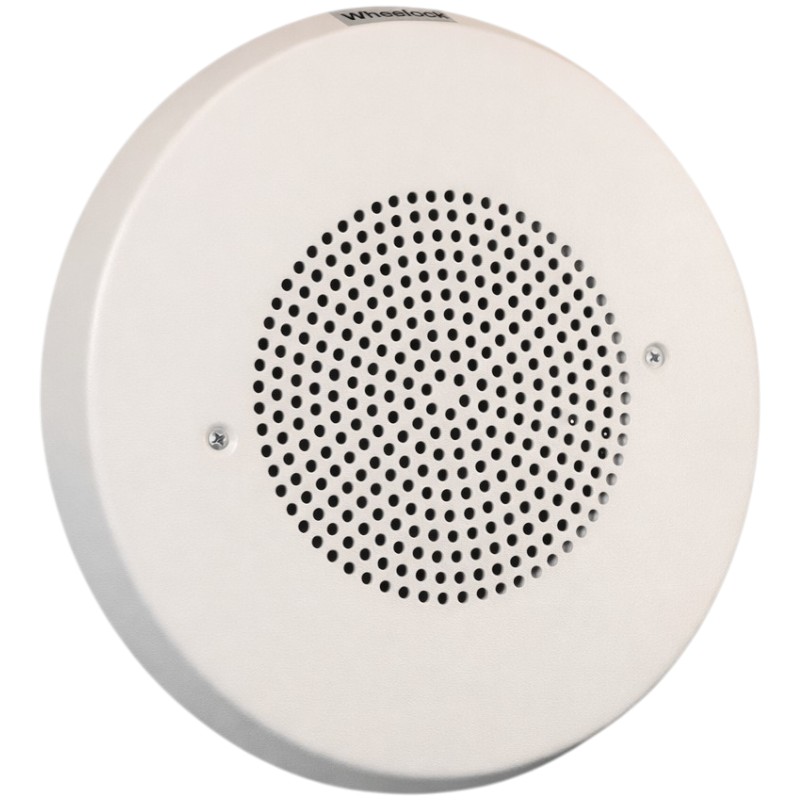

The Wheelock E90-W Speaker is a ceiling-mounted audible notification appliance designed for voice evacuation and mass notification applications. It provides clear voice messaging and tone signaling for indoor fire alarm systems.
Part of the Wheelock Series E product line, the E90-W delivers high intelligibility audio output across a wide frequency range, ensuring emergency messages are clearly understood. Its design supports both life safety signaling and general emergency communications in commercial and institutional environments.
The speaker supports dual voltage operation (25 VRMS and 70 VRMS) with field-selectable power taps, allowing installers to tailor sound output levels to specific room acoustics and coverage requirements. A built-in level adjustment feature further enhances installation flexibility.
Designed for efficient installation, the E90-W features a low-profile ceiling design and mounts to standard electrical backboxes. Its robust construction and compatibility with supervised audio circuits make it suitable for both new installations and retrofit applications.
The Wheelock E90-W Speaker is a ceiling-mounted audible notification appliance designed for voice evacuation and mass notification applications. It provides clear voice messaging and tone signaling for indoor fire alarm systems.
Part of the Wheelock Series E product line, the E90-W delivers high intelligibility audio output across a wide frequency range, ensuring emergency messages are clearly understood. Its design supports both life safety signaling and general emergency communications in commercial and institutional environments.
The speaker supports dual voltage operation (25 VRMS and 70 VRMS) with field-selectable power taps, allowing installers to tailor sound output levels to specific room acoustics and coverage requirements. A built-in level adjustment feature further enhances installation flexibility.
Designed for efficient installation, the E90-W features a low-profile ceiling design and mounts to standard electrical backboxes. Its robust construction and compatibility with supervised audio circuits make it suitable for both new installations and retrofit applications.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 0.43 × 7.27 × 7.27 in |
| Manufacturer | Eaton Corporation |
| Brand | Wheelock |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Color | White |
| Mounting | Ceiling |
| Marking | None |
| Series | Wheelock E70/E90 Series: Low Profile Speakers and Speaker Strobes |
| Production Status | Active |
Only logged in customers who have purchased this product may leave a review.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 0.43 × 7.27 × 7.27 in |
| Manufacturer | Eaton Corporation |
| Brand | Wheelock |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Color | White |
| Mounting | Ceiling |
| Marking | None |
| Series | Wheelock E70/E90 Series: Low Profile Speakers and Speaker Strobes |
| Production Status | Active |
• Ceiling-mount speaker for voice evacuation systems
• High intelligibility audio for clear messaging
• Dual voltage operation (25V / 70V)
• Field-selectable power taps (1/8–2 W)
• Built-in level adjustment feature
• Low-profile design for clean installation
• Compatible with supervised audio circuits
• E90-W Fire Alarm Speaker
