This product has been replaced by

Fireray 3000-103

Fireray® 3000 End-to-End Infrared Optical Beam Smoke Detector 16.5ft. to 393ft. (5m to 120m)

Manufacturer Part #: 3000-103

Fireray 3000-103

$1,019.58

Fireray® 3000 End-to-End Infrared Optical Beam Smoke Detector 16.5ft. to 393ft. (5m to 120m)

Availability: Estimated 14 days

Condition: New

Brand: Fireray

Status: Active

SKU: 52639

Manufacturer Part #: 3000-103

Description

The Fireray® 3000 End to End Infrared Optical Beam Smoke Detector (OBSD) has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.

The Fireray® 3000 is ideal for applications where line of sight for the IR (infrared) detection path is narrow and where the building structure uses reflective surfaces. It has also been designed to be aesthetically pleasing and thus can equally suit modern architectural buildings as well as historical sites, particularly where ornate ceilings exist.

Documents

Description

The Fireray® 3000 End to End Infrared Optical Beam Smoke Detector (OBSD) has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.

The Fireray® 3000 is ideal for applications where line of sight for the IR (infrared) detection path is narrow and where the building structure uses reflective surfaces. It has also been designed to be aesthetically pleasing and thus can equally suit modern architectural buildings as well as historical sites, particularly where ornate ceilings exist.

Additional information

Weight	1.34 lbs
Dimensions	2.81 × 4.88 × 7.99 in
Manufacturer	Halma
Brand	Fireray
Condition	New
Unit of Measurement	EA (Each)
Series	Fireray 3000: End-to-End Infrared Optical Beam Smoke Detector
Production Status	Active

Reviews

There are no reviews yet.

Be the first to review “Fireray 3000-103”

You must be logged in to post a review.

Fireray 3000; End-to-End Infrared Optical Beam Smoke Detector

Fireray - Data Sheet

End-To-End Optical Beam Smoke Detector

Fireray - User Guide

Attributes

Weight	1.34 lbs
Dimensions	2.81 × 4.88 × 7.99 in
Manufacturer	Halma
Brand	Fireray
Condition	New
Unit of Measurement	EA (Each)
Series	Fireray 3000: End-to-End Infrared Optical Beam Smoke Detector
Production Status	Active

Product Features

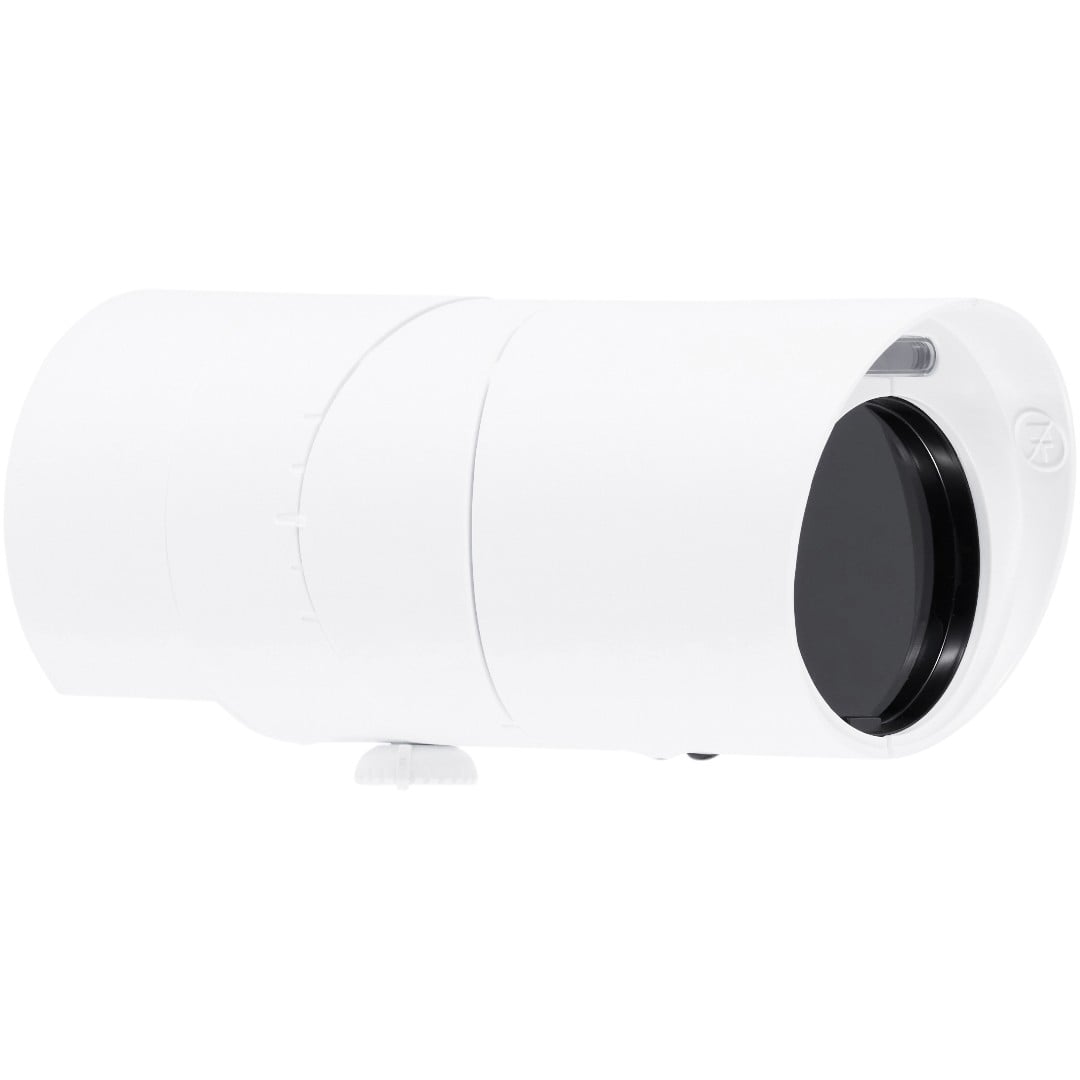

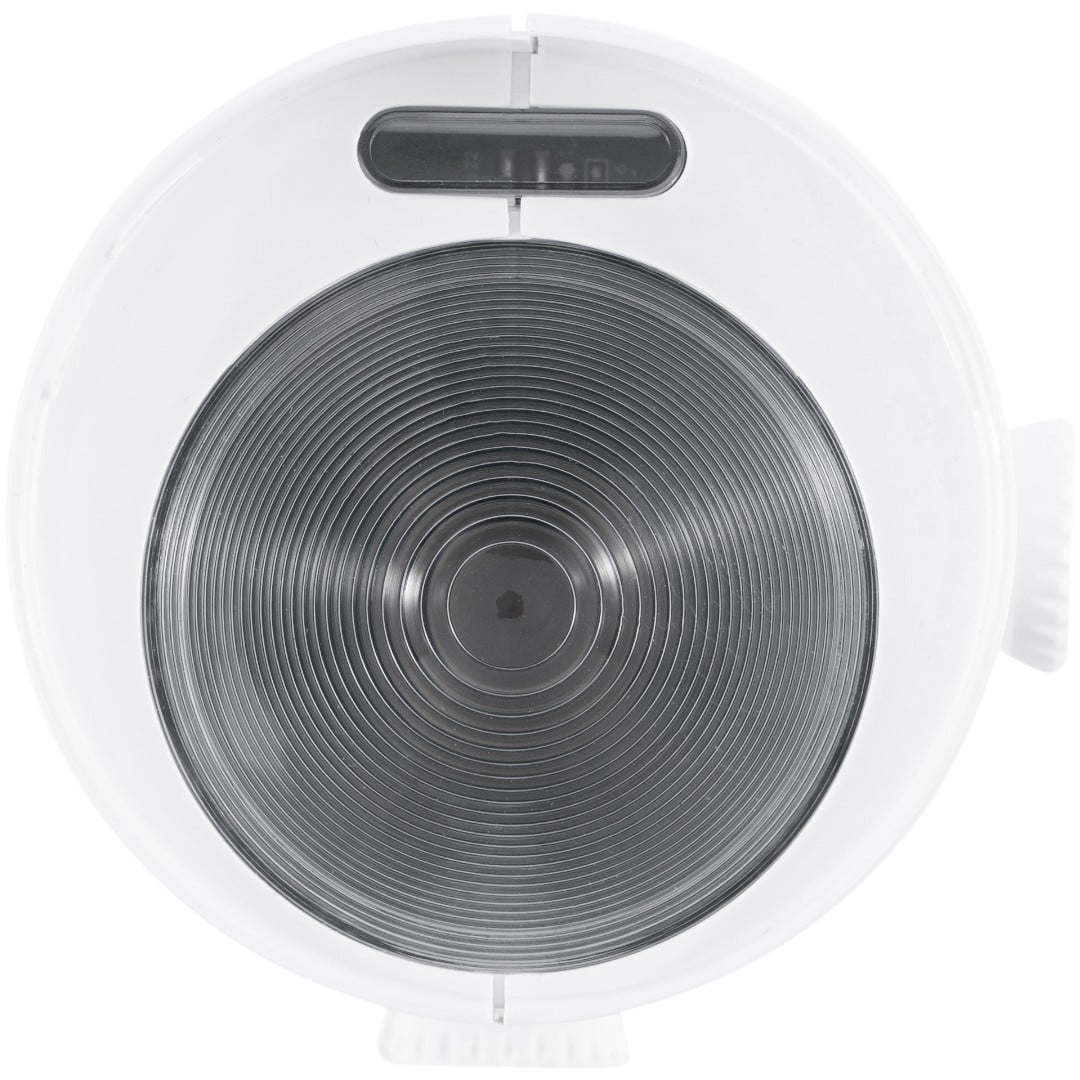

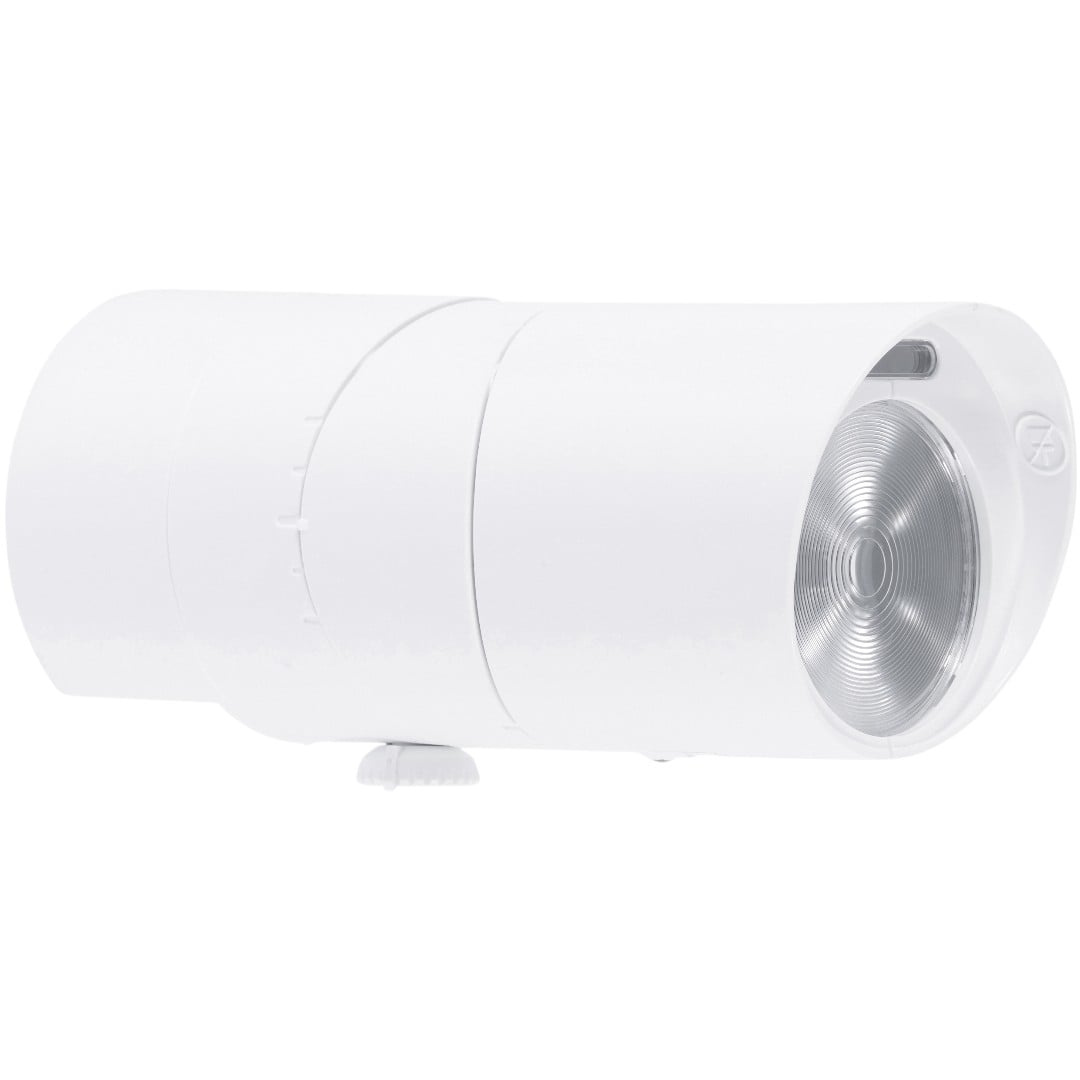

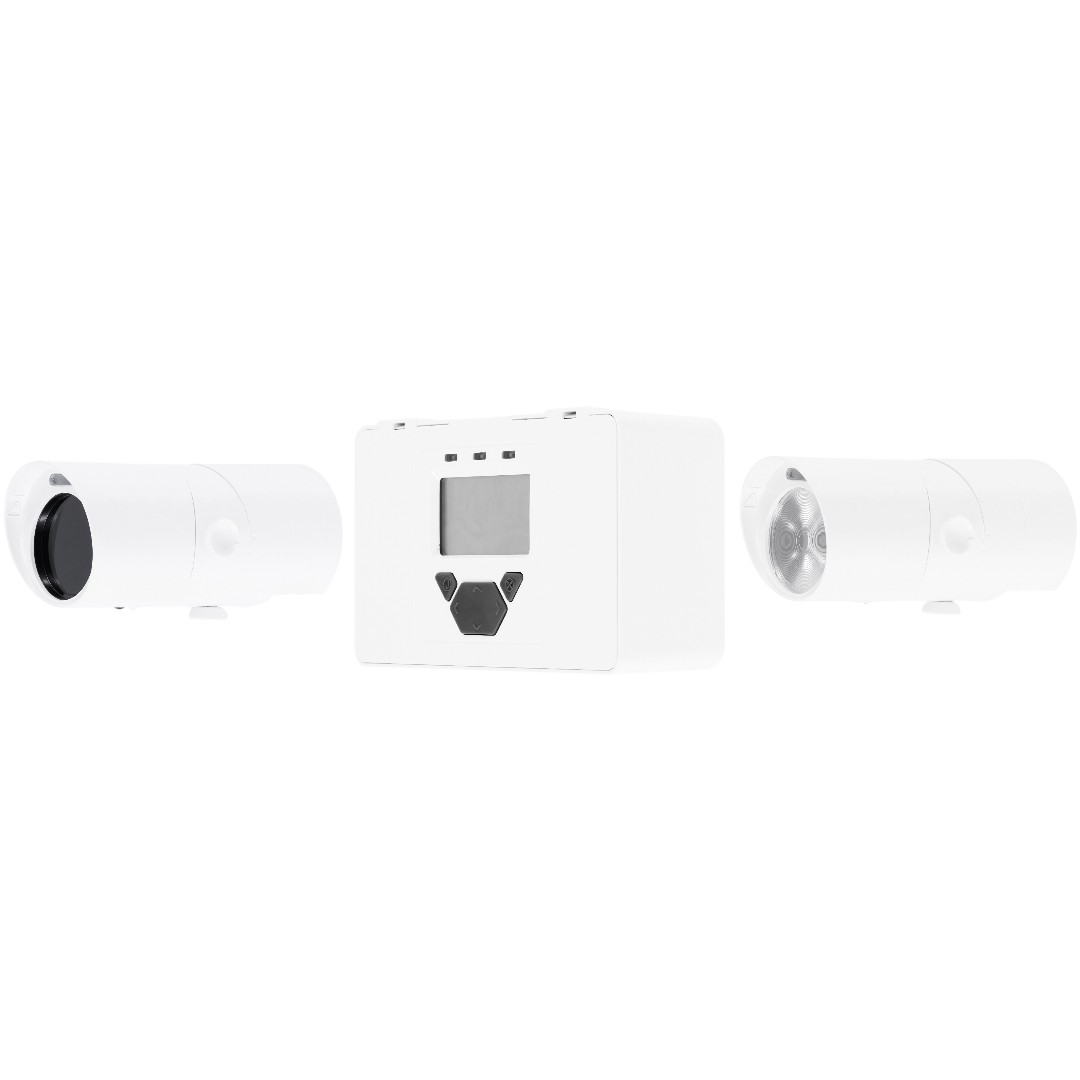

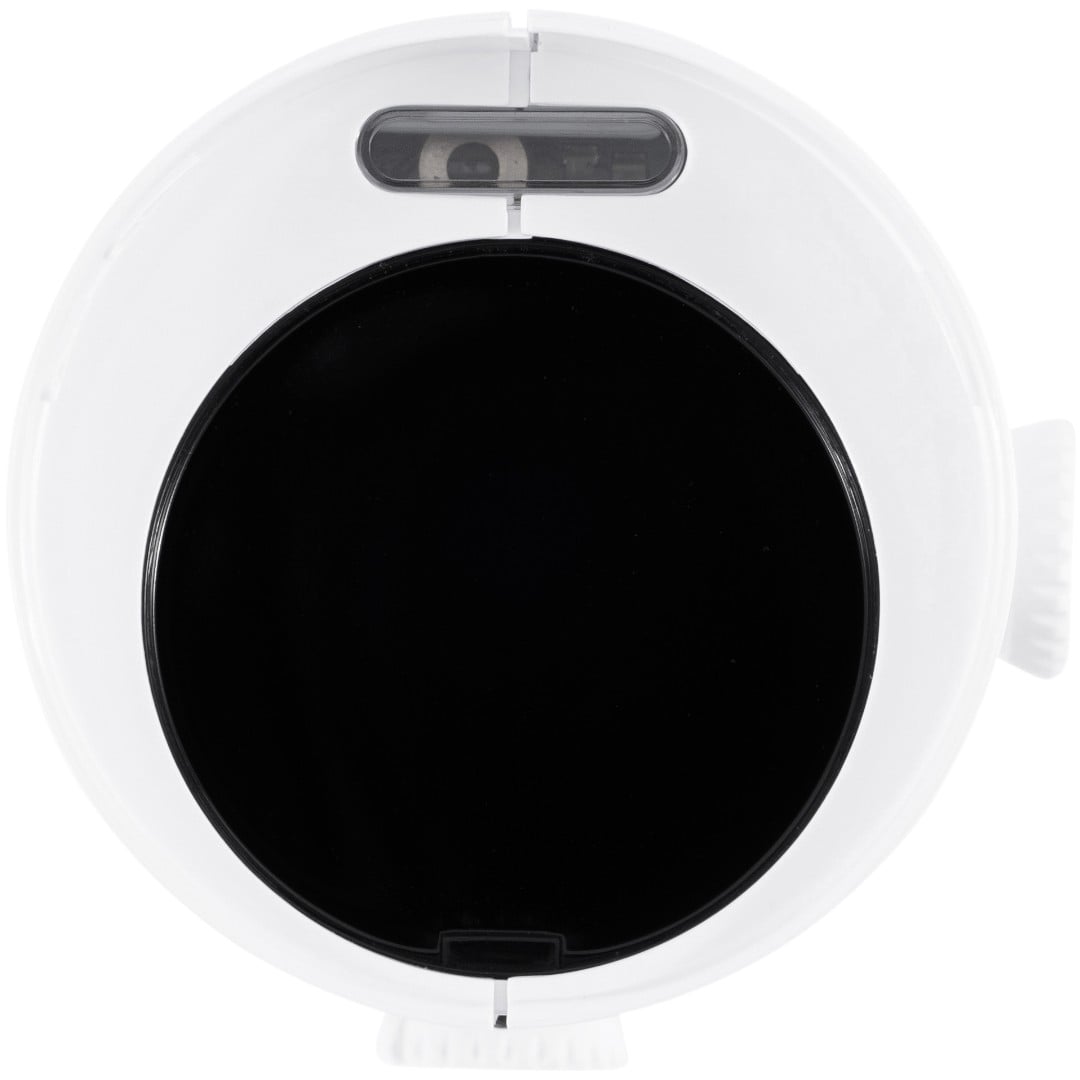

Separate Transmitter and Receiver Heads
Range 16.5 to 393 feet, configurable per set of Detectors
Lateral Spacing per NFPA 72 is 60 feet
Integral Laser Alignment in Receiver
2-wire Interface between Controller and Receiver
Single and Twin Channel capability
Separate Fire and Fault Relays per Detector

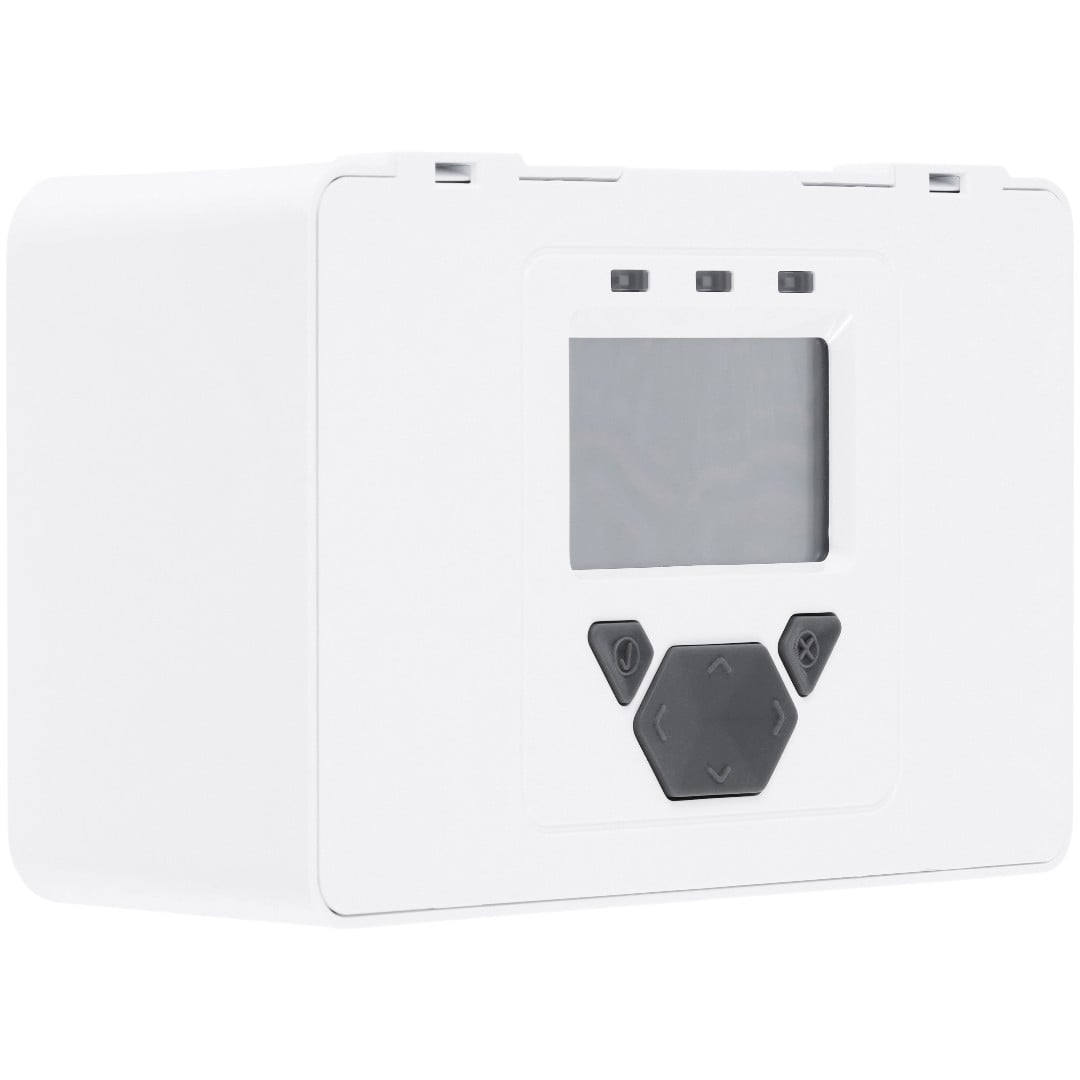

Low Level Controller with LCD display
Programmable Sensitivity and Fire Threshold
Automatic Gain Control (AGC) for drift compensation
Built-in electronic UL/ULC obscuration-acceptance fire test
Knockouts for ease of installation and wiring
Optional Transmitter powering from Controller
