Addressable Monitor, Class B Supervision
$100.49

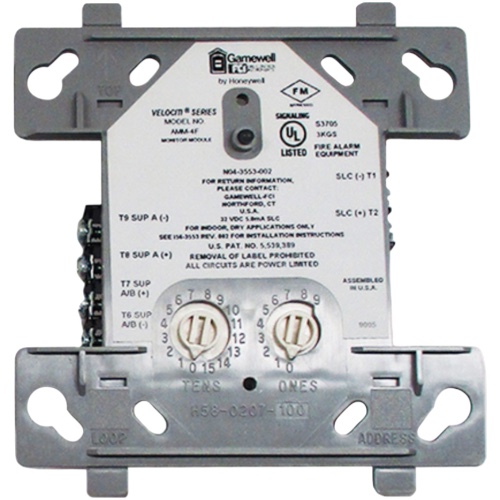

The Gamewell-FCI AMM-4F is an intelligent addressable monitor module designed for use with compatible Gamewell-FCI fire alarm control panels. It provides either a 2-wire (Style B) or 4-wire fault tolerant (Style D) Initiating Device Circuit (IDC) for monitoring normally open contact fire alarm, supervisory, or security devices.
The module features rotary address switches for point identification and a panel-controlled LED for status indication. The AMM-4F supports power-limited wiring and is intended for use on a two-wire Signaling Line Circuit (SLC). It mounts directly to a standard 4-inch square electrical box and is suitable for applications requiring fault-tolerant initiating circuits.
The Gamewell-FCI AMM-4F is an intelligent addressable monitor module designed for use with compatible Gamewell-FCI fire alarm control panels. It provides either a 2-wire (Style B) or 4-wire fault tolerant (Style D) Initiating Device Circuit (IDC) for monitoring normally open contact fire alarm, supervisory, or security devices.
The module features rotary address switches for point identification and a panel-controlled LED for status indication. The AMM-4F supports power-limited wiring and is intended for use on a two-wire Signaling Line Circuit (SLC). It mounts directly to a standard 4-inch square electrical box and is suitable for applications requiring fault-tolerant initiating circuits.
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 4.50 × 4.00 × 1.25 in |
| Manufacturer | Honeywell |
| Brand | Gamewell-FCI |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Type | Addressable |
| Operating Voltage | 15-32 VDC |
| EOL Resistance | 47K Ohms |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
Only logged in customers who have purchased this product may leave a review.
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 4.50 × 4.00 × 1.25 in |
| Manufacturer | Honeywell |
| Brand | Gamewell-FCI |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Type | Addressable |
| Operating Voltage | 15-32 VDC |
| EOL Resistance | 47K Ohms |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
