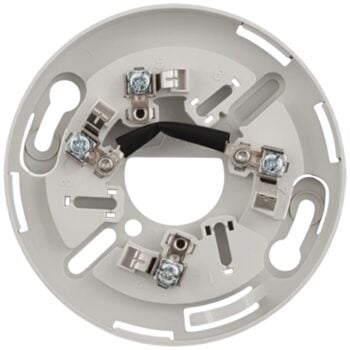

Kidde-Fenwal DS-SB 4 Inch Detector Base

Kidde-Fenwal DS-SB 4 Inch Detector Base

SKU: 56746

Manufacturer Part #: DS-SB

Condition: New

Brand: Kidde-Fenwal

Status: Active

4 Inch Detector Base, 6 Inch Trim Ring

Original price was: $30.02.Current price is: $28.59.

Ships same business day

Limited Stock

See more price and stock options

Join FireAlarm Plus to reduce your cost per unit and gain faster access to inventory on this purchase.

Description

The Kidde DS-SB is a standard detector mounting base designed for use with Kidde Fire Systems DS Series and compatible SmartOne addressable smoke detectors. It connects the detector head to the SmartOne Signaling Line Circuit (SLC) and provides accessible room-side wiring terminals for simplified installation and servicing.

The DS-SB base is a 4-inch diameter mounting base supplied with a 6-inch trim ring to conceal surface imperfections around the electrical box. It supports Class B (Style 4) wiring configurations and is not polarity sensitive. An optional locking feature prevents unauthorized removal of the detector head.

The DS-SB is compatible with SmartOne protocol control units and supports optional remote LED indication where applicable with compatible detector models.

Documents

Description

The Kidde DS-SB is a standard detector mounting base designed for use with Kidde Fire Systems DS Series and compatible SmartOne addressable smoke detectors. It connects the detector head to the SmartOne Signaling Line Circuit (SLC) and provides accessible room-side wiring terminals for simplified installation and servicing.

The DS-SB base is a 4-inch diameter mounting base supplied with a 6-inch trim ring to conceal surface imperfections around the electrical box. It supports Class B (Style 4) wiring configurations and is not polarity sensitive. An optional locking feature prevents unauthorized removal of the detector head.

The DS-SB is compatible with SmartOne protocol control units and supports optional remote LED indication where applicable with compatible detector models.

Additional information

Weight	0.2 lbs
Dimensions	2.00 × 6.00 × 6.00 in
Manufacturer	Carrier
Brand	Kidde-Fenwal
Condition	New
Unit of Measurement	EA (Each)
Production Status	Active
Type	Detector Base
Color	White
Series	Kidde-Fenwal KS Series: Addressable Smoke and Heat Detectors

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Attributes

Additional information

Weight	0.2 lbs
Dimensions	2.00 × 6.00 × 6.00 in
Manufacturer	Carrier
Brand	Kidde-Fenwal
Condition	New
Unit of Measurement	EA (Each)
Production Status	Active
Type	Detector Base
Color	White
Series	Kidde-Fenwal KS Series: Addressable Smoke and Heat Detectors

Product Features

• Standard mounting base for DS Series and compatible SmartOne detectors
• 2-wire connection to SmartOne SLC
• Room-side accessible wiring terminals
• Not polarity sensitive
• Optional locking feature to prevent detector removal
• Includes 6-inch trim ring for finished appearance
• Supports Class B (Style 4) wiring
• Designed for plug-in detector heads

What's Included

• DS-SB Standard Detector Mounting Base
• 6 in. Trim Ring
