Fike FIK-PULL-DA

$99.26

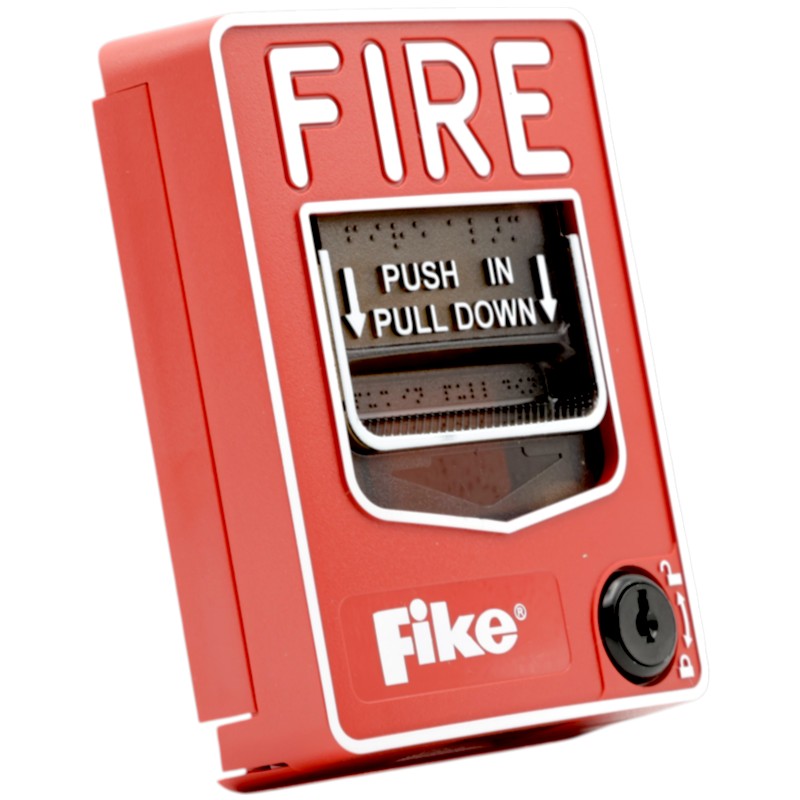

Dual Action Pull Station

Availability: Estimated 14 days

Condition: New
Brand: Fike
Status: Active
SKU: 131602
Manufacturer Part #: FIK-PULL-DA
Secondary Part #: IDP-PULL-DA

Description

The FIK‐PULL‐SA is a single‐action pull station requiring only one action to activate the station. The FIK‐PULL‐DA is a dual‐action pull station requiring two actions to activate the station. Both pull stations can be used with Fike’s FCP Series fire alarm control panels (FACP).

The FIK‐PULL‐SA and FIK‐PULL‐DA are extremely easy to operate and provide a fast and practical means of manually initiating a fire alarm signal. The FACP recognizes each pull station by its specific address, saving precious seconds in determining an alarm’s location.

The FIK‐PULL‐SA and FIK‐PULL‐DA can be surface mounted to an SB‐I/O surface back box or semi‐flush mounted on a standard single‐gang, double‐gang, or 4” (10.61 cm) square electrical box with a minimum depth of 2.13” (5.4 cm). An optional trim ring (BG‐TR) is available if the station is being semi‐flush mounted.

Additional information

Weight 0.3 lbs
Dimensions 5.50 × 4.00 × 1.45 in
Manufacturer

Fike Corporation

Brand

Condition

New

Unit of Measurement

EA (Each)

Production Status

Active

Features

  • Installer can open the station without causing an alarm condition
  • Dual‐color LED is visible through the handle of the station, blinks green to indicate normal operation, and remains steady red in an alarm condition
  • Key operated test and reset lock using lock plate actuator
  • Key matches compatible FACP locks
  • Meeds ADA requirements for 5 lbs. maximum pull force to activate
  • Meets the Americans with Disabilities Act Accessibility Guidelines (ADAAG)
  • Reliable analog communications for trouble‐free operation
  • Braille text on station handle
  • Rotary address switches for fast installation
  • Handle latches in the down position, and the word “Activated” appears, clearly indicating the station has been pulled

FIK‐PULL‐SA and FIK‐PULL‐DA Intelligent Pull Stations

Download

Fike - Data Sheet

FIK-PULL-DA Addressable Pull Station (Dual-Action)

Download

Fike - Data Sheet
