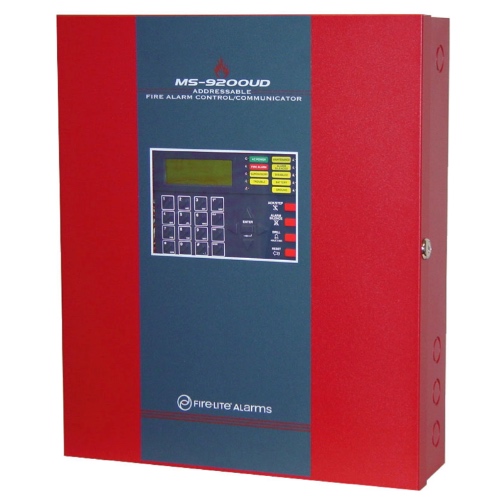

The Fire•Lite MS-9200UD is a compact, cost-effective, intelligent addressable fire alarm control panel with a capacity of 198 addressable Fire•Lite devices on one Signaling Line Circuit (SLC) and a built-in modem for remote site upload/download or remote monitoring.
The Signaling Line Circuit (SLC) loop supports up to 99 addressable detectors including photoelectric, photoelectric with heat, ionization, photoelectric duct, fixed heat, fixed heat with rate-of- rise, and fixed high-heat detectors. It also supports up to 99 addressable modules, including monitor (two-wire detector, normally open devices), dual-monitor functions (two monitor circuits from one module, two addresses used), control (for Notification Appliance Circuits), and relay (two Form-C) modules. The panel uses surface-mount technology and is designed for ease of installation, programming, and maintenance. It features the latest in advanced fire protection technology, including maintenance alert and automatic detector test functions.
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.37 × 15.50 × 18.50 in |
| Manufacturer | Honeywell |
| Brand | Fire-Lite |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Discontinued |
| Listings & Approvals | CSFM, FM, MEA, UL |
