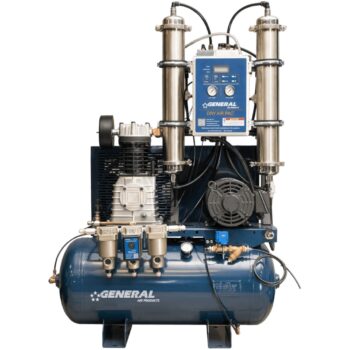

General Air Products Dry Air Pac is a FM Approved, twin tower regenerative dryer / compressor package designed for fire protection. This turn-key system provides the dry pipe or pre-action sprinkler system with moisture free air to a -40° to -60°F dew point standard (-100°F dew point is achievable - consult factory for details). Ensuring that no moisture is sent downstream from the air compressor will significantly reduce corrosion in all systems and prevent ice plug formation in cold storage applications.
The air compressor on the Dry Air Pac is designed to fill the sprinkler system in 30 minutes in accordance with NFPA 13 standards, as well as provide the higher pressure needed to allow the twin tower regenerative dryer to function at peak efficiency.
General Air Products Dry Air Pac is a FM Approved, twin tower regenerative dryer / compressor package designed for fire protection. This turn-key system provides the dry pipe or pre-action sprinkler system with moisture free air to a -40° to -60°F dew point standard (-100°F dew point is achievable – consult factory for details). Ensuring that no moisture is sent downstream from the air compressor will significantly reduce corrosion in all systems and prevent ice plug formation in cold storage applications.
The air compressor on the Dry Air Pac is designed to fill the sprinkler system in 30 minutes in accordance with NFPA 13 standards, as well as provide the higher pressure needed to allow the twin tower regenerative dryer to function at peak efficiency.
| Weight | 205 lbs |
|---|---|
| Manufacturer | General Air Products |
| Brand | General Air Products |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Weight | 205 lbs |
|---|---|
| Manufacturer | General Air Products |
| Brand | General Air Products |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
• Pre-Packaged Desiccant Sleeves
• Automatic Drain Valve with
• Timer Controls
• Push-Connect Fittings
• Digital Control Panel
• Oil-less Option Available
• Filter Assembly
• Maintenance Features
• Turn-key Design for Easy Installation
• -40° to -60° F Dew Point Standard
• NEMA Rated / UL Listed Motor
• Industrial Duty Compressor Pump
• Integrated Twin Tower Desiccant Dryer
• Compact Air Cooled Aftercooler
• Fully Integrated Control Panel
• ASME Coded Air Receiver
• Bubble Tight Air Check Valves
• ASME Pressure Safety Valves
• Vibration Isolation Pads
• Pre-piped, Pre-wired & Pre-Tested
• Lifetime Customer Service & Tech Support
