Hochiki DH-100-P

$173.08

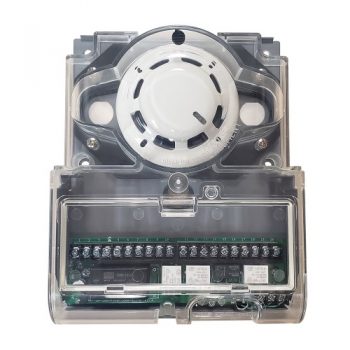

Conventional Duct Smoke Detector

Availability: Estimated 14 days

Request a Quote

Condition: New

Brand: Hochiki

Status: Active

SKU: 51928

Manufacturer Part #: DH-100-P

Secondary Part #: 0200-09410

Description

The DH-100-P is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. The DH-100-P is provided with a local test button, and output terminals for remote status indicators and test switches. Air sampling is accomplished by two tubes which protrude into the duct. The 7.5" exhaust tube is supplied with the duct smoke detector unit. Once the duct width has been determined the air intake sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths 2.5ft., 5 ft. and 10ft. and cut to size to fit the duct.

Documents

Description

The DH-100-P is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. The DH-100-P is provided with a local test button, and output terminals for remote status indicators and test switches. Air sampling is accomplished by two tubes which protrude into the duct. The 7.5″ exhaust tube is supplied with the duct smoke detector unit. Once the duct width has been determined the air intake sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths 2.5ft., 5 ft. and 10ft. and cut to size to fit the duct.

Additional information

Weight	1.20 lbs
Dimensions	2.50 × 7.50 × 9.50 in
Manufacturer	Hochiki Corporation
Brand	Hochiki
Condition	New
Unit of Measurement	EA (Each)
Production Status	Active
Type	Duct Detector
Detection Method	Photoelectric

Reviews

There are no reviews yet.

Be the first to review “Hochiki DH-100-P”

You must be logged in to post a review.

Conventional Duct Smoke Detector

Hochiki - Data Sheet

DH-100-P Four-Wire Duct Smoke Detector

Hochiki - Installation Instructions

Attributes

Weight	1.20 lbs
Dimensions	2.50 × 7.50 × 9.50 in
Manufacturer	Hochiki Corporation
Brand	Hochiki
Condition	New
Unit of Measurement	EA (Each)
Production Status	Active
Type	Duct Detector
Detection Method	Photoelectric

Product Features

New Rugged Durable Housing
Easy Smoke Testing Port
Removable Terminal Cover
Durable Steel Base, Silicone Gaskets, Polycarbonate Housing
Multi-Voltage Compatibility
Installs quickly and easily
No screens or filters to clean
UL 268A Listed
