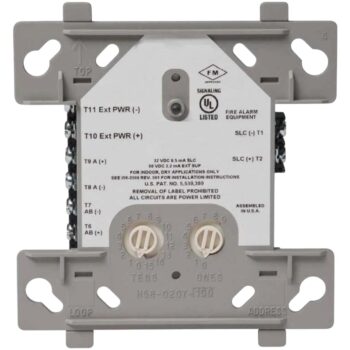

The FRM-1(A) Addressable Relay Module provides the system with a dry-contact output for activating a variety of auxiliary devices, such as fans, dampers, control equipment, etc. Addressability allows the dry contact to be activated, either manually or through panel programming, on a select basis.
| Dimensions | 4.5 × 4 × 1.25 in |
|---|---|
| Manufacturer | Honeywell |
| Brand | Notifier |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Listings & Approvals | ULC |
| Dimensions | 4.5 × 4 × 1.25 in |
|---|---|
| Manufacturer | Honeywell |
| Brand | Notifier |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Listings & Approvals | ULC |
• Built-in type identification automatically identifies these devices to the control panel.
• Internal circuitry and relay powered directly by two-wire SLC loop. The FCM-1(A) module requires power (for horns, strobes, etc.), or audio (for speakers).
• Integral LED “blinks” green each time a communication is received from the control panel and turns on in steady red when activated.
• LED blink may be deselected globally (affects all devices).
• High noise immunity (EMF/RFI).
• The FCM-1(A) may be used to switch 24-volt NAC power, audio (up to 70.7 Vrms).
• Wide viewing angle of LED.
• SEMS screws with clamping plates for wiring ease.
• Direct-dial entry of address 01– 159 for FlashScan loops, 01 – 99 for CLIP mode loops.
• Speaker, and audible/visual applications may be wired for Class B or A (Style Y or Z).
