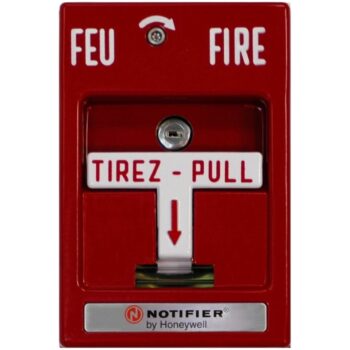

The NOTIFIER MPS Addressable Series manual stations provide reporting for the NFS-320C, NFS2-640, and NFS2-3030 fire alarm control panels; NFW-MPS series manual stations provide reporting for FireWarden series panels. These high quality, die cast metal manual stations include screw terminal connections, and integrated break-glass rod. The alarm contact for the manual station is rated for 1A, 24VDC. The contacts are gold plated to avoid the risk of corrosion.
The MPS Series manual stations are available as single or twostage for addressable systems. Models N-MPS-SA/SAC are singlestage manual stations. Models N-MPS-2AC/2A (two-stage models) are similar to the N-MPS-SC (single-stage models) except they contain an additional 2nd Stage normally open key-switch. A 2nd stage key is supplied with each unit to activate the 2nd Stage keyswitch.
All models are available with screw terminal connectors and a hex key for reset. Two-stage models also include a key-switch and 2 keys. All addressable models require an additional trim plate (sold separately) to mount on a 4” electrical box (RMS-TP3) or a 2 gang electrical box (RMS-TP1) with a minimum depth of 5.5cm (2.125”). All addressable models can mount to a single gang electrical box for retrofit situations when used with an extension ring (MPS-ER, sold separately).
For surface mounting, use NOTIFIER surface back-box with all addressable manual stations.
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.75 × 3.22 × 2.4 in |
| Manufacturer | Honeywell International |
| Brand | Notifier |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.75 × 3.22 × 2.4 in |
| Manufacturer | Honeywell International |
| Brand | Notifier |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
• Constructed of high quality die-cast metal
• Highly visible red enamel finish
• English and French lettering
• Single action pull lever design
• Optional dual action lever kit
• Integrated break-glass
• Hex key resettable
• Screw terminal connectors
• Optional ancillary contact for local mag-lock release
• Single-stage and two-stage models
• Key-switch activation for second stage
• Fully addressable using Flashscan® or CLIP technology
• Single-stage addressable manual stations require one address on a data communications link (DCL) circuit
• Two-stage addressable manual stations require two addresses on a data communications link (DCL) circuit
• Surface or semi-flush mounting
• All addressable models mount on a standard 4” square electrical box or a two-gang electrical box with suitable semi-flush mounting plate (sold separately)
• All addressable models can mount to a single-gang electrical box for retrofit situations when used with an extension ring (MPS-TR, sold separately)
