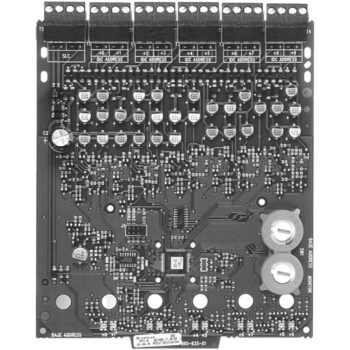

The XP10-M ten-input monitor module is an interface between a control panel and normally open contact devices in intelligent alarm systems such as pull stations, security contacts, or flow switches.
The first address on the XP10-M is set from 01 to 150 and the remaining modules are automatically assigned to the next nine higher addresses. Provisions are included for disabling a maximum of two unused addresses.
The supervised state (normal, open, or short) of the monitored device is sent back to the panel. A common SLC input is used for all modules, and the initiating device loops share a common supervisory supply and ground — otherwise each monitor operates independently from the others.
Each XP10-M module has panel-controlled green LED indicators. The panel can cause the LEDs to blink, latch on, or latch off.
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 6.8 × 5.5 × 1.25 in |
| Manufacturer | Honeywell |
| Brand | Notifier |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Listings & Approvals | CSFM, FM Approved, UL, ULC |
