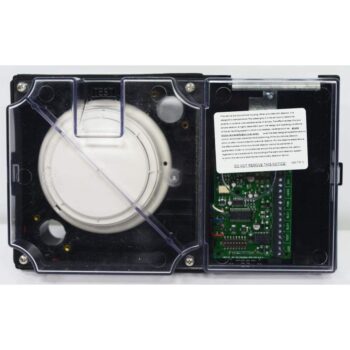

Simplex 4098-9756

$206.21

Duct Sensor Housing with supervised multiple relay output, requires separate 24 VDC fire alarm power and 4081-9008 end-of-line resistor harness; includes one 4098-9843 relay

Availability: In Stock
Request a Quote
Condition: New
Brand: Simplex
Status: Active
SKU: 4879
Manufacturer Part #: 4098-9756
Note: Includes factory installed TrueAlarm photoelectric smoke sensor.

Description

Simplex compact air duct smoke sensor housings provide TrueAlarm operation for the detection of smoke in air conditioning or ventilating ducts. Sampling tubes are installed into the duct allowing air to be directed to the smoke sensor mounted in the housing.

Documents

Description

Simplex compact air duct smoke sensor housings provide TrueAlarm operation for the detection of smoke in air conditioning or ventilating ducts. Sampling tubes are installed into the duct allowing air to be directed to the smoke sensor mounted in the housing.

Additional information

Weight 2.5 lbs
Dimensions 3.375 × 6.75 × 11.375 in
Manufacturer

Johnson Controls
Brand

Condition

New
Unit of Measurement

EA (Each)
Production Status

Active
Type

Duct Detector
Connection

Terminal Block
Construction

ABS, Polycarbonate
Detectable Medium

Smoke
Detection Method

Photoelectric
Location

Indoor, Outdoor*
Programming

DIP Switch
Protocol

IDNet, MAPNET II
Status Indicator

LED
Test Method

Magnet
Voltage

24 VDC
Voltage Range

18 – 32 VDC
Series

Reviews

There are no reviews yet.

Be the first to review “Simplex 4098-9756”

TrueAlarm Analog Sensing; Addressable Duct Sensor Housings with TrueAlarm Photoelectric Sensor

Download

Simplex - Data Sheet

Duct Detector/Sensor; 4098-9685, -9686, -9688, -9755, -9756

Download

Simplex - Installation Instructions

Attributes

Weight 2.5 lbs
Dimensions 3.375 × 6.75 × 11.375 in
Manufacturer

Johnson Controls
Brand

Condition

New
Unit of Measurement

EA (Each)
Production Status

Active
Type

Duct Detector
Connection

Terminal Block
Construction

ABS, Polycarbonate
Detectable Medium

Smoke
Detection Method

Photoelectric
Location

Indoor, Outdoor*
Programming

DIP Switch
Protocol

IDNet, MAPNET II
Status Indicator

LED
Test Method

Magnet
Voltage

24 VDC
Voltage Range

18 – 32 VDC
Series

Product Features

  • UL listed to Standard 268A
  • Clear cover allows a visual inspection
  • Test ports provide functional smoke testing access with cover in place
  • Mounts to rectangular ducts or round ducts; minimum size is 8″ (203 mm) square or 18″ (457 mm) diameter
  • Magnetic test feature for alarm initiating at housing
  • Optional weatherproof enclosure is available separately (refer to data sheet S4098-0032)
