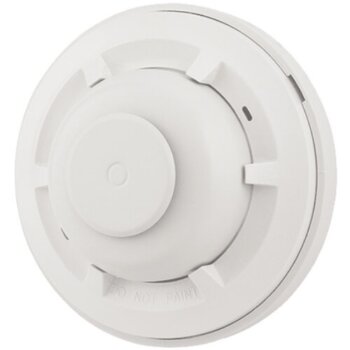

System Sensor 5603

$26.81

Mechanical Heat Detector; Single Circuit, 135°F (57°C), Fixed Temperature

Availability: In Stock

Condition: New

Brand: System Sensor

Status: Active

SKU: 9957

Manufacturer Part #: 5603

Description

Multiple configurations. The 5600 series offers a full-line of configurations to accommodate a broad range of applications. Both single- and dual-circuit models are available for low- and high- temperature ratings with either fixed temperature or combination fixed temperature/rate-of-rise (ROR) activation. The ROR element of the fixed/ROR models is restorable to accommodate field-testing. Installation flexibility. To satisfy a variety of installation needs, the 5600 series easily mounts to single-gang and octagonal back boxes. And these models accommodate four-square back boxes, when used with a square to round plaster ring. The reversible mounting bracket permits both flush- and surface-mount back box installations. Visual identification. The 5600 series provides clear markings on the exterior of the unit to ensure that the proper detector is being used. Alphanumeric characters identify the activation method, as well as the temperature rating, in Fahrenheit and Celsius degrees. Fixed temperature models are identified FX, while combination fixed/ rate-of-rise units are marked FX/ROR. The 5600 series also provides a post-activation indicator in the form of a collector. When the detector is activated, the collector drops from the unit, making it easy to identify the unit in alarm.

Documents

Description

Multiple configurations. The 5600 series offers a full-line of configurations to accommodate a broad range of applications. Both single- and dual-circuit models are available for low- and high- temperature ratings with either fixed temperature or combination fixed temperature/rate-of-rise (ROR) activation. The ROR element of the fixed/ROR models is restorable to accommodate field-testing.

Installation flexibility. To satisfy a variety of installation needs, the 5600 series easily mounts to single-gang and octagonal back boxes. And these models accommodate four-square back boxes, when used with a square to round plaster ring. The reversible mounting bracket permits both flush- and surface-mount back box installations.

Visual identification. The 5600 series provides clear markings on the exterior of the unit to ensure that the proper detector is being used. Alphanumeric characters identify the activation method, as well as the temperature rating, in Fahrenheit and Celsius degrees. Fixed temperature models are identified FX, while combination fixed/ rate-of-rise units are marked FX/ROR. The 5600 series also provides a post-activation indicator in the form of a collector. When the detector is activated, the collector drops from the unit, making it easy to identify the unit in alarm.

Additional information

Weight	0.2 lbs
Terminal Type	Screw Terminals
Thermal Rating	135°F
Series	5600 Series: Mechanical Heat Detectors
Condition	New
Detection Method	Fixed Temperature
Brand	System Sensor
Production Status	Active

Reviews

There are no reviews yet.

Be the first to review “System Sensor 5603”

You must be logged in to post a review.

5600 Series: Mechanical Heat Detectors

System Sensor - Data Sheet

Attributes

Weight	0.2 lbs
Terminal Type	Screw Terminals
Thermal Rating	135°F
Series	5600 Series: Mechanical Heat Detectors
Condition	New
Detection Method	Fixed Temperature
Brand	System Sensor
Production Status	Active

Product Features

Multiple configurations for installation:
- Single- and dual-circuit models
- Fixed temp and combination fixed- temp/rate-of-rise 135°F or 194°F ratings.
Plain housing for residential installations (Model 5601P)
Easy-to-use terminal screws
A broad range or back mounting options:
- Single gang
- 3.5″ and 4″ Octagonal
- 4″ square with square to round plaster ring
Reversible mounting bracket
