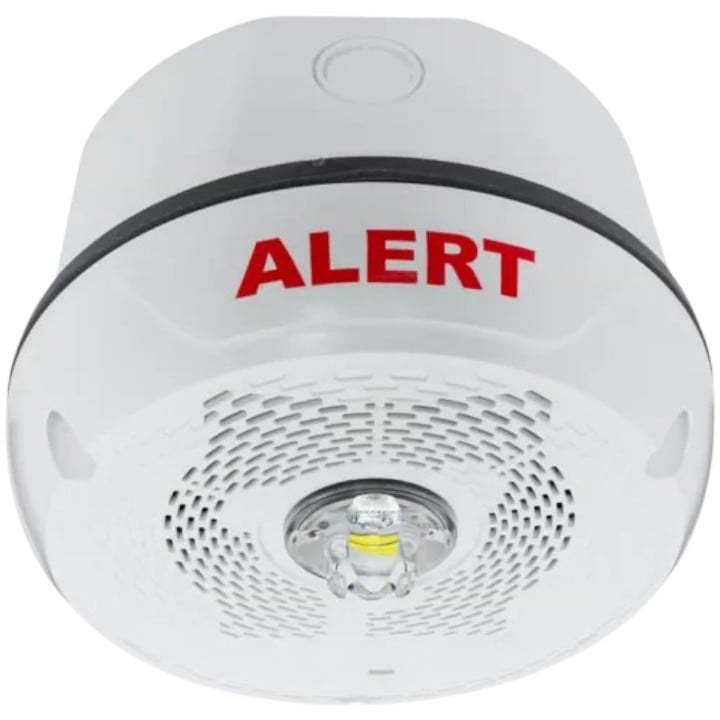

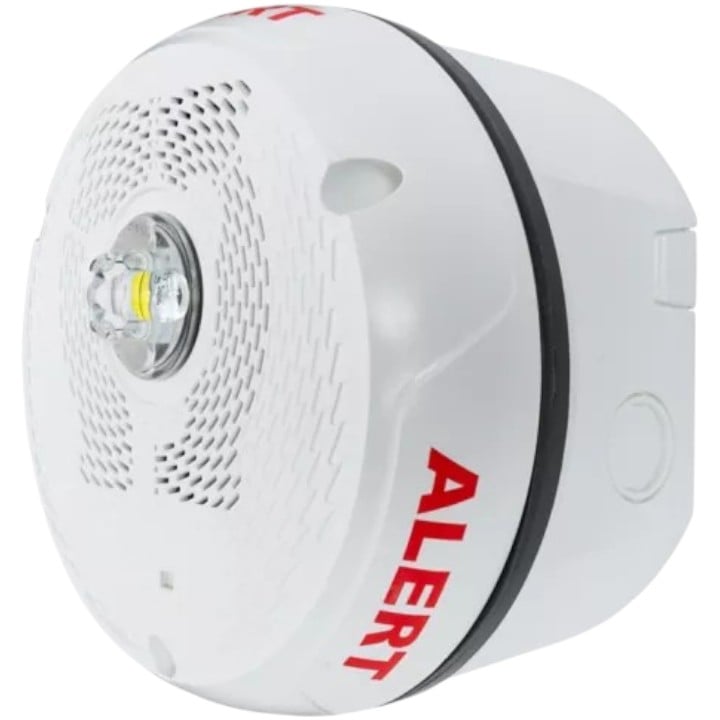

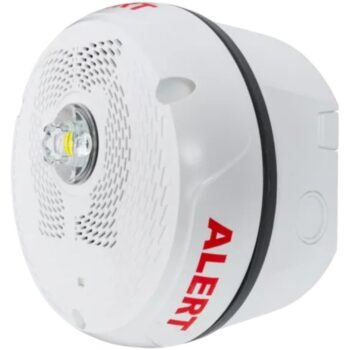

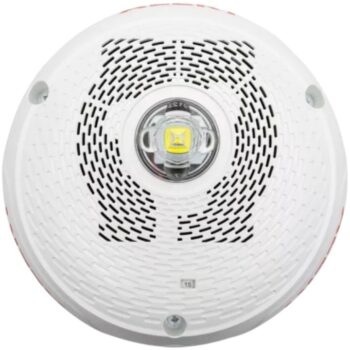

The System Sensor L-Series Outdoor Speakers and L-Series with LED Outdoor Speaker Strobes offer the most versatile and easy-to-use line of weatherproof speakers and speaker strobes that can meet virtually any application requirement, including indoor, outdoor, wet, dry, and washdown environment applications in temperatures from −40°F to 151°F. The speakers provide a broad frequency response range, low harmonic distortion offering a high fidelity sound output while offering a high-volume sound output for use in high ambient noise applications.
The L-Series Outdoor and L-Series with LED Outdoor appliances are NEMA 4X and IP56 rated without having to seal the back box. Additional caulk or sealant are not required on the back box for a faster, cleaner installation. The L-Series platform offers a modern aesthetic across the indoor and outdoor platform and design variations across applications: wall or ceiling mount, red or white color choices, LED colored lenses for distinctive visual signaling. In addition, installers can easily adjust appliances through rotary switches for candela, speaker voltage and power settings.
LED technology offers significantly lower current draw compared to older Xenon bulbs across a full candela range. This improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements allowing for simpler and lower cost installations. UL listed waterproof wire nuts are provided to make the connection between the fi eld wiring and the mounting plates.
The outdoor devices ship with plastic back boxes that accommodate in-and-out wiring for daisy chaining devices. Knock-outs located on the back eliminate the need to drill holes for screw-in mounting.
| Dimensions | 6.96 × 6.96 × 4.98 in |
|---|---|
| Manufacturer | Honeywell International |
| Brand | System Sensor |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Listings & Approvals | cULus, FM Approved |
| Dimensions | 6.96 × 6.96 × 4.98 in |
|---|---|
| Manufacturer | Honeywell International |
| Brand | System Sensor |
| Condition | New |
| Unit of Measurement | EA (Each) |
| Production Status | Active |
| Listings & Approvals | cULus, FM Approved |
• LED technology provides lower current draw
• Weatherproof per NEMA 4X, IP56 as a standalone device
• Rated from -40°F to 151°F
• Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 VDC
• Field-selectable candela settings on wall units: 15, 30, 75, 95,
110, 135, and 185
• Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
• Rotary switches for candela, speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1, and 2 watts)
• Mounting plates with wire nuts are provided to make the connection between the field wiring and the mounting plates
• Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL Sync Module
• Tamper-resistant construction
• Speakers and Speaker strobes listed for wall or ceiling use
• Speakers offer high fidelity and high volume sound output
