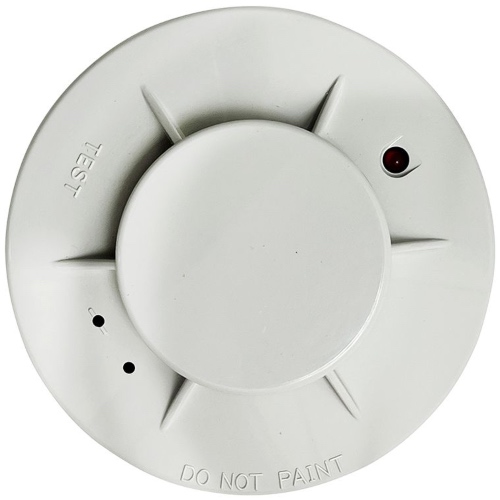

Kidde-Fenwal PSD-7155

Photoelectric Smoke Detector,  0-300 ft./min. for open area detection

Condition: New
Brand: Kidde-Fenwal
Status: Obsolete
SKU: 93311
Manufacturer Part #: PSD-7155
Secondary Part #: 71-550000-001
Replacement: KS-PS

Description

The PDS-7155 photoelectric smoke detector respond to a broad spectrum of both flaming and smoldering fire conditions. They incorporate state-of-the-art solid state, low-voltage circuitry featuring SMT (Surface Mount Technology) and are designed for 2-wire and 4-wire installation with proper base.

Additional information

Weight 0.5 lbs
Dimensions 3.89 × 3.89 × 3.50 in
Manufacturer

Carrier

Brand

Condition

New

Unit of Measurement

EA (Each)

Production Status

Obsolete

Features

  • UL 268 and 268A Listed #S1064, Vol 12/13. Sec1
  • FM Approved #OW3A2-AY (3230)
  • CSFM Listed #07272-1076:117
  • MEA Accepted #346-92E
  • ULC Listed #3810 D19 – File CS 194
  • In Place Sensitivity (% per foot obscuration)
  • Optional thermistor heat detector
  • Functional Test Capability–Remote and Local (magnet test)
  • Input voltage range 10.2 to 36.8 VDC
  • Low Profile Appearance with SMT – Surface Mount Technology
  • Electrically and Mechanically compatible with all Fenwal detector and bases
  • Three-year warranty
  • Optional 2- and 4-wire relay bases
  • Universal relay modules
  • Non-polarized
  • High air velocity rating
  • Low-current design
  • Interchangeable bases
  • Flashing LED for visual supervision
  • EMI/RFI resistant
  • Tamper Resistant, Fine Mesh Insect Screen
  • Locking Features for vandal resistance
  • Nominal sensitivity 3.25% obscuration/floor

Photoelectric Smoke Detector; Series PSD-7155 and PSD-7156

Download

Fenwal - Data Sheet
