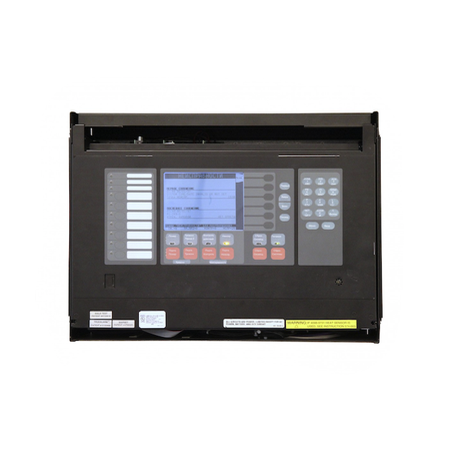

Simplex 4100-9212


4100 ES Master Controller Assembly, InfoAlarm Command Center

Availability: Please Call for Lead Time

    Brand: Simplex Part #: 47501 Categories: , Manufacturer Part #: 4100-9212


    The 4100ES product line offers a wide variety of standard and optional features. For many common applications, the capacity of these pre-configured models will satisfy the system requirement and also offer capacity for additional on-site module additions or for future expansion.


    Weight 15 lbs



    • Color-coded operator interface
    • InfoAlarm Command Center display panel allows custom labeling
    • Dual configuration program CPU with convenient service port access
    • System power supply (SPS) and charger (9 A total) with on-board: 3, 3A NACs, 250 point IDNet addressable device interface, programmable auxiliary output, alarm relay, and battery charger for up to 115 Ah sealed lead-acid batteries (up to 50 Ah batteries can be mounted in 2-bay cabinets)
    • Module level ground fault search locates and isolates faults to assist installation and service
    • Power supply inputs are 220-240 VAC, 50/60 Hz


    4100ES Fire Control Panels: Addressable Fire Detection and Control; Pre-Configured 4100ES Fire Alarm Control Panels
