Mini Monitor, Contact Supervision
$87.99

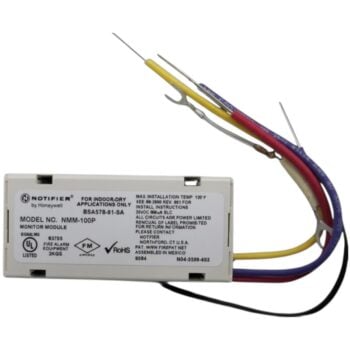

The Notifier NMM-100P is a miniature addressable monitor module designed for use with Notifier FireWarden Series intelligent fire alarm control panels. The module supervises a Style B (Class B) initiating device circuit and reports the status of connected dry-contact devices to the control panel via the signaling line circuit (SLC).
Its compact design allows the module to be installed inside a single-gang electrical box directly behind the device it monitors, making it suitable for retrofit installations and limited-space applications. Typical monitored devices include manual pull stations, waterflow switches, conventional heat detectors, and other normally-open alarm or supervisory contacts.
The module communicates with the fire alarm control panel using the SLC loop and requires no additional power supply. Built-in rotary switches allow direct address selection, and a panel-controlled LED provides visual indication of communication and alarm status.
The Notifier NMM-100P is a miniature addressable monitor module designed for use with Notifier FireWarden Series intelligent fire alarm control panels. The module supervises a Style B (Class B) initiating device circuit and reports the status of connected dry-contact devices to the control panel via the signaling line circuit (SLC).
Its compact design allows the module to be installed inside a single-gang electrical box directly behind the device it monitors, making it suitable for retrofit installations and limited-space applications. Typical monitored devices include manual pull stations, waterflow switches, conventional heat detectors, and other normally-open alarm or supervisory contacts.
The module communicates with the fire alarm control panel using the SLC loop and requires no additional power supply. Built-in rotary switches allow direct address selection, and a panel-controlled LED provides visual indication of communication and alarm status.
| Weight | 0.20 lbs |
|---|---|
| Dimensions | 0.65 × 1.30 × 2.75 in |
| Manufacturer | Honeywell International |
| Unit of Measurement | EA (Each) |
| Condition | New |
| Programming | Rotary Dials |
| Compatibility | |
| Brand | Notifier |
| Type | Addressable Monitor Module |
| Input Voltage | 15–32 VDC |
| Production Status | Active |
Only logged in customers who have purchased this product may leave a review.
| Weight | 0.20 lbs |
|---|---|
| Dimensions | 0.65 × 1.30 × 2.75 in |
| Manufacturer | Honeywell International |
| Unit of Measurement | EA (Each) |
| Condition | New |
| Programming | Rotary Dials |
| Compatibility | |
| Brand | Notifier |
| Type | Addressable Monitor Module |
| Input Voltage | 15–32 VDC |
| Production Status | Active |
• Miniature addressable monitor module for FireWarden systems
• Supervises normally-open dry-contact initiating devices
• Compact design allows installation behind monitored devices
• Supports Style B (Class B) initiating device circuit wiring
• Powered directly from the SLC loop without additional power supply
• Rotary address switches allow simple device addressing
• LED indicator flashes during polling and latches during alarm
• High immunity to electromagnetic and radio-frequency interference
• Tinned stripped leads simplify field wiring
• NMM-100P mini monitor module
• 47 kΩ End-of-Line resistor
